ASP.NET MVC 4 Request Pipeline Internals

ASP.NET MVC 4 Request Pipeline
Lukasz Lysik
ASP.NET MVC 4 Study Group
20/08/2013

ASP.NET MVC Request Pipeline
http://localhost/Controller/Action/1
Hello
World!

HTTP Modules and HTTP Handlers
(Not directly related to ASP.NET MVC but short
introduction will help understand further topics.)
An HTTP module is an assembly that is called on every
request made to your application.
An HTTP handler is the process (frequently referred to
as the "endpoint") that runs in response to a request
made to an ASP.NET Web application.
Source: http://msdn.microsoft.com/en-us/library/bb398986%28v=vs.100%29.aspx

HTTP Modules and HTTP Handlers
HTTP
Module 1
HTTP
Module 2
HTTP
Module 3
HTTP
Module 4
HTTP Handler
“HttpHandler is where the request train is headed. HttpModule is a station along the way.”
Source: http://stackoverflow.com/questions/6449132/http-handler-vs-http-module

Typical Uses
HTTP Modules
Security
Statistics and logging
Custom headers or
footers
HTTP Handlers
RSS feeds
Image server

Custom HTTP Modules
public class HelloWorldModule : IHttpModule
{
public void Init(HttpApplication application)
{
application.BeginRequest += (new EventHandler(this.Application_BeginRequest));
application.EndRequest += (new EventHandler(this.Application_EndRequest));
}
private void Application_BeginRequest(Object source, EventArgs e)
{
HttpApplication application = (HttpApplication)source;
HttpContext context = application.Context;
context.Response.Write("<h1><font color=red> HelloWorldModule: Beginning of Request </font></h1><hr>");
}
private void Application_EndRequest(Object source, EventArgs e)
{
HttpApplication application = (HttpApplication)source;
HttpContext context = application.Context;
context.Response.Write("<hr><h1><font color=red> HelloWorldModule: End of Request</font></h1>");
}
public void Dispose() { }
}
<configuration>
<system.web>
<httpModules>
<add name="HelloWorldModule" type="HelloWorldModule"/>
</httpModules>
</system.web>
</configuration>
Source: http://msdn.microsoft.com/en-us/library/ms227673%28v=vs.85%29.aspx
public interface IHttpModule
{
void Init(HttpApplication context);
void Dispose();
}

Custom HTTP Handlers
using System.Web;
public class HelloWorldHandler : IHttpHandler
{
public void ProcessRequest(HttpContext context)
{
HttpRequest Request = context.Request;
HttpResponse Response = context.Response;
Response.Write("<html>");
Response.Write("<body>");
Response.Write("<h1>Hello from a synchronous custom HTTP handler.</h1>");
Response.Write("</body>");
Response.Write("</html>");
}
public bool IsReusable
{
get { return false; }
}
}
public interface IHttpHandler
{
bool IsReusable { get; }
void ProcessRequest(HttpContext context);
}
<configuration>
<system.web>
<httpHandlers>
<add verb="*" path="*.sample" type="HelloWorldHandler"/>
</httpHandlers>
</system.web>
</configuration>
Source: http://msdn.microsoft.com/en-us/library/ms228090%28v=vs.100%29.aspx
If you plan to write your own web framework this is good starting point.

Existing HTTP Modules and HTTP
Handlers
HTTP Modules and HTTP Handlers are registered in
.NET Framework’s Web.config:
c:WindowsMicrosoft.NETFrameworkv4.0.30319Configweb.config
Further info: http://programmer.lysik.pl/2013/08/asp-net-http-modules-and-http-handlers.html

ASP.NET MVC Request Pipeline
1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
It all start with UrlRoutingModule.

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
HTTP Handler
HTTP
Module 1
HTTP
Module 2

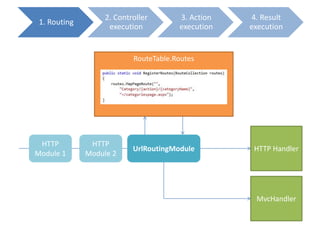

UrlRoutingModule
RouteTable.Routes
MvcHandler

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
MvcApplication (Global.asax)
RouteTable.Routes
(System.Web.Routing)
System.Web.Mvc.RouteCollectionExtensions

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
Url IRouteHandler Defaults Constraints DataTokens
/Category/{action}/{id} PageRouteHandler … … …
/{controller}/{action}/{id} MvcRouteHandler … … …
… … … … …
RouteTable.Routes
(System.Web.Routing)RouteTable.Routes in fact contains:
Classes that implement IRouteHandler are not HTTP handlers! But they should return one.
System.Web.Mvc.MvcRouteHandler MvcHandler
System.Web.Routing.PageRouteHandler Page or UrlAuthFailureHandler
System.Web.WebPages.ApplicationParts.ResourceRouteHandler ResourceHandler
System.ServiceModel.Activation.ServiceRouteHandler AspNetRouteServiceHttpHandler

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
UrlRoutingModule
1
2
3
4
RemapHandler tells IIS which HTTP handler we want to use.
RouteTable.Routes

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
1
RouteTable.Routes
(System.Web.Routing)
RouteCollection
public RouteData GetRouteData(HttpContextBase httpContext)
{
if (this.Count == 0) return (RouteData) null;
. . .
foreach (RouteBase routeBase in (Collection<RouteBase>) this)
{
RouteData routeData = routeBase.GetRouteData(httpContext);
if (routeData != null)
{
return routeData;
}
}
return (RouteData) null;
}
public override RouteData GetRouteData(HttpContextBase httpContext)
{
RouteValueDictionary values = this._parsedRoute.Match(httpContext.Request.AppRelativeCurrentExecutionFilePath.Substring(2)
+ httpContext.Request.PathInfo, this.Defaults);
RouteData routeData = new RouteData((RouteBase) this, this.RouteHandler);
if (!this.ProcessConstraints(httpContext, values, RouteDirection.IncomingRequest))
return (RouteData) null;
. . .
return routeData;
}
Route

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
HTTP Handler
HTTP
Module 1
HTTP
Module 2
UrlRoutingModule
RouteTable.Routes
MvcHandler
4

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
MvcHandler
Controller Builder
3. Call Execute on created Controller
2. Create Controller using ControllerFactory
1. Get ControllerFactory

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
MvcHandler
private void ProcessRequestInit(HttpContextBase httpContext, out IController controller, out IControllerFactory factory)
{
. . .
string requiredString = this.RequestContext.RouteData.GetRequiredString("controller");
factory = this.ControllerBuilder.GetControllerFactory();
controller = factory.CreateController(this.RequestContext, requiredString);
if (controller != null)
return;
. . .
}
2
1
3

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
factory = this.ControllerBuilder.GetControllerFactory();
controller = factory.CreateController(this.RequestContext, requiredString);
2
ControllerBuilder
internal ControllerBuilder(IResolver<IControllerFactory> serviceResolver)
{
ControllerBuilder controllerBuilder = this;
IResolver<IControllerFactory> resolver = serviceResolver;
if (resolver == null)
resolver = (IResolver<IControllerFactory>) new SingleServiceResolver<IControllerFactory>(
(Func<IControllerFactory>) (() => this._factoryThunk()), (IControllerFactory) new DefaultControllerFactory()
{
ControllerBuilder = this
}, "ControllerBuilder.GetControllerFactory");
controllerBuilder._serviceResolver = resolver;
}
public class CustomControllerFactory : IControllerFactory
{
public IController CreateController(RequestContext requestContext, string controllerName)
{
. . .
}
}
public class MvcApplication : System.Web.HttpApplication
{
protected void Application_Start()
{
IControllerFactory factory = new CustomControllerFactory();
ControllerBuilder.Current.SetControllerFactory(factory);
}
}
Custom Controller Factory
MvcHandler

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
Controller / ControllerBase
Dependency
Resolution
4. Call InvokeAction on action invoker.
3. Get action invoker.
2. Get action name from RouteData.
1. Call ExecuteCore
0. Execute being called by MvcHandler

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
3
ControllerBase
Controller : ControllerBase
protected override void ExecuteCore()
{
. . .
string requiredString = this.RouteData.GetRequiredString("action");
this.ActionInvoker.InvokeAction(this.ControllerContext, requiredString);
. . .
}

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
3
Controller : ControllerBase
protected virtual IActionInvoker CreateActionInvoker()
{
return (IActionInvoker) DependencyResolverExtensions.GetService<IAsyncActionInvoker>(this.Resolver)
?? DependencyResolverExtensions.GetService<IActionInvoker>(this.Resolver)
?? (IActionInvoker) new AsyncControllerActionInvoker();
}
Possible methods of replacing default
ActionInvoker:
• Assign to ActionInvoker property.
• Override CreateActionInvoker method.
• Use dependency injection.

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
6. Invoke action result
5. Invoke action
4. Bind models.
3. Invoke authorization filters.
2. Find action using descriptor
1. Get controller descriptor (reflection).
0. InvokeAction being called by Controller.ExecuteCore
ActionInvoker

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
ControllerActionInvoker : IActionInvoker
this.ActionInvoker.InvokeAction(this.ControllerContext, requiredString);
1
2
3
4
6
5

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
4

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
6

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
ViewResultBase
ViewResultBase
ViewResult PartialViewResult

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
ViewResult
PartialViewResult

1. Routing
2. Controller
execution
3. Action
execution
4. Result
execution
JsonResult
HttpStatusCodeResult
