Practical Ruby Projects with MongoDB - Ruby Kaigi 2010
7 likes996 views
The document discusses using MongoDB for practical projects by modeling objects in a document-oriented way rather than using an ORM with a relational database. It provides examples of accounting, logging, and blogging applications that are better suited to MongoDB's schema-less and embedded document features compared to a relational database.
![@alex = Person.new(
:name => "alex",
:stalkings => [
Friend.new("Jim"),
Friend.new("Bob")]
)](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-23-320.jpg)
![NATIVE RUBY OBJECT
<Person:0x10017d030 @name="alex",
@stalkings=
[#<Friend:0x10017d0a8 @name="Jim">,
#<Friend:0x10017d058 @name="Bob">
]>](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-24-320.jpg)
![JSON
REPRESENTATION
@alex.to_json
=> { name: "alex", stalkings: [{ name: "Jim" }, { name: "Bob" }] }](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-25-320.jpg)
![Ruby -> JSON -> SQL
<Person:0x10017d030 @name="alex",
@stalkings=
Ruby [#<Friend:0x10017d0a8 @name="Jim">,
#<Friend:0x10017d058 @name="Bob">
]>
@alex.to_json
JSON { name: "alex",
stalkings: [{ name: "Jim" }, { name: "Bob" }]
}
people:
- name
SQL stalkings:
- name
- stalker_id
- stalkee_id](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-28-320.jpg)
![Ruby -> JSON -> SQL
<Person:0x10017d030 @name="alex",
@stalkings=
Ruby [#<Friend:0x10017d0a8 @name="Jim">,
#<Friend:0x10017d058 @name="Bob">
]>
@alex.to_json
JSON { name: "alex",
stalkings: [{ name: "Jim" }, { name: "Bob" }]
}
people:
- name Feels like we’re working
SQL stalkings: too hard here
- name
- stalker_id
- stalkee_id](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-29-320.jpg)
![# index is only created if it does not exist
logs.create_index('status')
# can index on embedded documents
logs.create_index('user.first_name')
# create compound indexes
logs.create_index(
[['user.first_name', 1],
['user.last_name', 1]]
)](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-63-320.jpg)
![SQL-BASED OBJECT MODEL
@debit = Entry.new(:account => 'Cash',
:amount => 100.00, :type => 'credit')
@credit = Entry.new(:account => 'Notes Pay.',
:amount => 100.00, :type => 'debit')
@line_item = LineItem.new(:ledger_id => 1,
:entries => [@debit, @credit])](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-77-320.jpg)
![SQL-BASED OBJECT MODEL
@debit = Entry.new(:account => 'Cash',
:amount => 100.00, :type => 'credit')
@credit = Entry.new(:account => 'Notes Pay.',
:amount => 100.00, :type => 'debit')
@line_item = LineItem.new :ledger_id => 1, :entries => [@debit, @credit]
In a relational schema, we need a database
transaction to ensure multi-row atomicity](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-78-320.jpg)
![SQL-BASED OBJECT MODEL
@debit = Entry.new(:account => 'Cash',
:amount => 100.00, :type => 'credit')
@credit = Entry.new(:account => 'Notes Pay.',
:amount => 100.00, :type => 'debit')
@line_item = LineItem.new :ledger_id => 1, :entries => [@debit, @credit]
Because we need to create 3 new records in
the database here](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-79-320.jpg)
![MONGO-FIED MODELING
@line_item = LineItem.new(:ledger_id => 1,
:entries => [
{:account => 'Cash', :type => 'debit', :amount => 100},
{:account => 'Notes pay.', :type => 'debit', :amount => 100}
]
)](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-80-320.jpg)
![MONGO-FIED MODELING
@line_item = LineItem.new(:ledger_id => 1,
:entries => [
{:account => 'Cash', :type => 'debit', :amount => 100},
{:account => 'Notes pay.', :type => 'debit', :amount => 100}
]
)
This is the perfect case for embedded documents.](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-81-320.jpg)
![MONGO-FIED MODELING
@line_item = LineItem.new(:ledger_id => 1,
:entries => [
{:account => 'Cash', :type => 'debit', :amount => 100},
{:account => 'Notes pay.', :type => 'debit', :amount => 100}
]
)
We will never have more than a few entries (usually two)](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-82-320.jpg)
![MONGO-FIED MODELING
@line_item = LineItem.new(:ledger_id => 1,
:entries => [
{:account => 'Cash', :type => 'debit', :amount => 100},
{:account => 'Notes pay.', :type => 'debit', :amount => 100}
]
)
Embedded docs are perfect for “contains”
many relationships](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-83-320.jpg)
![MONGO-FIED MODELING
@line_item = LineItem.new(:ledger_id => 1,
:entries => [
{:account => 'Cash', :type => 'debit', :amount => 100},
{:account => 'Notes pay.', :type => 'debit', :amount => 100}
]
)
DB-level transactions no-longer needed.
Mongo has single document atomicity.](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-84-320.jpg)
![MONGOMAPPER
require 'mongo'
connection = Mongo::Connection.new.db("blog_app")
class Post
include MongoMapper::Document
belongs_to :author, :class_name => "User"
key :title, String, :required => true
key :body, String, :required => true
key :author_id, Integer, :required => true
key :published_at, Time
key :published, Boolean, :default => false
key :tags, Array, :default => []
timestamps!
end](https://image.slidesharecdn.com/practicalrubyprojectswithmongodb-rubykaigi-100829003551-phpapp02/85/Practical-Ruby-Projects-with-MongoDB-Ruby-Kaigi-2010-115-320.jpg)
Practical Ruby Projects with MongoDB - Ruby Kaigi 2010
- 2. WHO AM I? Alex Sharp Lead Developer at OptimisDev @ajsharp (on the twitters) alexjsharp.com (on the ‘tubes) github.com/ajsharp (on the ‘hubs)
- 3. MAJOR POINTS • Making the case for Mongo • Brief intro to MongoDB • Practical Projects
- 5. THE PROBLEMS OF SQL
- 6. A BRIEF HISTORY OF SQL • Developed at IBM in early 1970’s. • Designed to manipulate and retrieve data stored in relational databases
- 7. A BRIEF HISTORY OF SQL • Developed at IBM in early 1970’s. • Designed to manipulate and retrieve data stored in relational databases this is a problem
- 8. WE DON’T WORK WITH DATA...

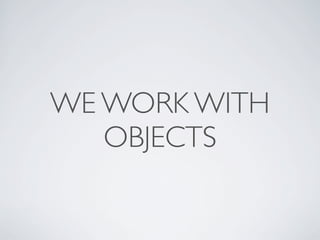

- 9. WE WORK WITH OBJECTS
- 10. WE DON’T CARE ABOUT STORING DATA
- 11. WE CARE ABOUT PERSISTING STATE
- 12. DATA != OBJECTS
- 13. THEREFORE...
- 15. relational DBs are an antiquated tool for our needs
- 16. OK, SO WHAT? Relational schemas are designed to store and query data, not persist objects.
- 17. To reconcile this mismatch, we have ORM’s
- 18. Object Relational Mappers
- 19. ORMs enable us to create a mapping between our native object model and a relational schema
- 20. We’re forced to create relationships for data when what we really want is properties for objects.
- 21. THIS IS NOT EFFICIENT
- 23. @alex = Person.new( :name => "alex", :stalkings => [ Friend.new("Jim"), Friend.new("Bob")] )
- 24. NATIVE RUBY OBJECT <Person:0x10017d030 @name="alex", @stalkings= [#<Friend:0x10017d0a8 @name="Jim">, #<Friend:0x10017d058 @name="Bob"> ]>

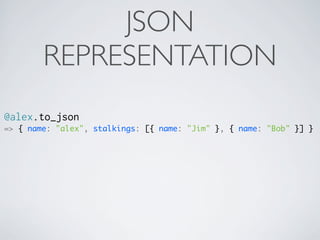

- 25. JSON REPRESENTATION @alex.to_json => { name: "alex", stalkings: [{ name: "Jim" }, { name: "Bob" }] }
- 26. Relational Schema Representation people: - name stalkings: - name - stalker_id - stalkee_id
- 27. SQL Schema Representation people: - name stalkings: - name What!? - stalker_id - stalkee_id
- 28. Ruby -> JSON -> SQL <Person:0x10017d030 @name="alex", @stalkings= Ruby [#<Friend:0x10017d0a8 @name="Jim">, #<Friend:0x10017d058 @name="Bob"> ]> @alex.to_json JSON { name: "alex", stalkings: [{ name: "Jim" }, { name: "Bob" }] } people: - name SQL stalkings: - name - stalker_id - stalkee_id
- 29. Ruby -> JSON -> SQL <Person:0x10017d030 @name="alex", @stalkings= Ruby [#<Friend:0x10017d0a8 @name="Jim">, #<Friend:0x10017d058 @name="Bob"> ]> @alex.to_json JSON { name: "alex", stalkings: [{ name: "Jim" }, { name: "Bob" }] } people: - name Feels like we’re working SQL stalkings: too hard here - name - stalker_id - stalkee_id
- 30. You’re probably thinking... “SQL isn’t that bad”
- 31. Maybe.
- 32. But we can do better.
- 33. THE IDEAL PERSISTENCE LAYER:
- 34. THE IDEAL PERSISTENCE LAYER: 1. To persist objects in their native state
- 35. THE IDEAL PERSISTENCE LAYER: 1. To persist objects in their native state 2. Does not interfere w/ application development
- 36. THE IDEAL PERSISTENCE LAYER: 1. To persist objects in their native state 2. Does not interfere w/ application development 3. Provides features needed to build modern web apps
- 37. MONGO TO THE RESCUE!
- 38. WHAT IS MONGODB? mongodb is a high-performance, schema-less, scalable, document- oriented database
- 39. STRENGTHS
- 40. SCHEMA-LESS
- 41. SCHEMA-LESS • Great for rapid, iterative, agile development
- 42. SCHEMA-LESS • Great for rapid, iterative, agile development • Makes things possible that in an RDBMS are either a. impossibly hard b. virtually impossible c. way harder than they should be

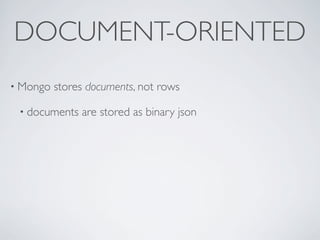

- 44. DOCUMENT-ORIENTED • Mongo stores documents, not rows • documents are stored as binary json
- 45. DOCUMENT-ORIENTED • Mongo stores documents, not rows • documents are stored as binary json • Rich, familiar query syntax
- 46. DOCUMENT-ORIENTED • Mongo stores documents, not rows • documents are stored as binary json • Rich, familiar query syntax • Embedded documents eliminate many modeling headaches
- 47. QUERY EXAMPLES sample mongo document {'status': 500, 'request_method': 'post', 'controller_action': 'notes#create', 'user': {'first_name': 'John', 'last_name': 'Doe'} }
- 48. QUERY EXAMPLES logs.find('status' => 500) # SQL equivalent: # select * from logs WHERE logs.status = 500 {'status': 500, 'request_method': 'post', 'controller_action': 'notes#create', 'user': {'first_name': 'John', 'last_name': 'Doe'} }
- 49. QUERY EXAMPLES logs.find('status' => 500, 'user.last_name' => 'Doe') # SQL equivalent: none {'status': 500, 'request_method': 'post', 'controller_action': 'notes#create', 'user': {'first_name': 'John', 'last_name': 'Doe'} }
- 50. QUERY EXAMPLES logs.find('status' => 500, 'user.last_name' => 'Doe') {'status': 500, 'request_method': 'post', user is an 'controller_action': 'notes#create', embedded document 'user': {'first_name': 'John', 'last_name': 'Doe'} }
- 51. QUERY EXAMPLES logs.find('status' => 500, 'user.last_name' => 'Doe') in sql, we would have JOIN-ed to the ‘users’ table to do this query
- 52. QUERY EXAMPLES # also works w/ regex logs.find('request_method' => /p/i) # SQL equivalent: # select * from logs where request_method LIKE %p% {'status': 500, 'request_method': 'post', 'controller_action': 'notes#create', 'user': {'first_name': 'John', 'last_name': 'Doe'} }
- 53. BIG DATA
- 54. BIG DATA • Built to scale horizontally into the cloudz
- 55. BIG DATA • Built to scale horizontally into the cloudz • Auto-sharding • set a shard-key, a cluster of nodes, go
- 56. FAST WRITES
- 57. FAST WRITES • In-place updates • i.e. upsert
- 58. FAST WRITES • In-place updates • i.e. upsert • Lot’s of db commands for fast updates • $set, $unset, $inc, $push
- 59. UPSERT • Update if present, insert otherwise • careful: update does a hard replace of the entire document # initial insert posts.save(:title => 'my post', :body => '...') # update-in-place "upsert" posts.save(:_id => 'post_id', :title => 'new title', :body => '...')
- 61. AGGREGATION // map function() { emit(this.controller_action, { count: 1 }); } // reduce function(key, values) { var sum = 0; values.forEach(function(doc) { sum += doc.count; }); return { count: sum }; }
- 62. FAST READS Optimize reads with indexes, just like an rdbms
- 63. # index is only created if it does not exist logs.create_index('status') # can index on embedded documents logs.create_index('user.first_name') # create compound indexes logs.create_index( [['user.first_name', 1], ['user.last_name', 1]] )
- 64. WEAKNESSES
- 65. JOINS nope.
- 66. MULTI-DOCUMENT TRANSACTIONS no-sir-ee.
- 67. RELATIONAL INTEGRITY not a chance.
- 69. 1. Accounting Application 2. Capped Collection Logging 3. Blogging app
- 70. GENERAL LEDGER ACCOUNTING APPLICATION
- 71. THE OBJECT MODEL ledger * transactions * entries
- 72. THE OBJECT MODEL # Credits Debits Line item { 1 { :account => “Cash”, :amount => 100.00 } { :account => “Notes Pay.”, :amount => 100.00 } Ledger Entries Line item { 2 { :account => “A/R”, :amount => 25.00 } { :account => “Gross Revenue”, :amount => 25.00 }
- 73. THE OBJECT MODEL
- 74. THE OBJECT MODEL • Each ledger line item belongs to a ledger
- 75. THE OBJECT MODEL • Each ledger line item belongs to a ledger • Each ledger line item has two (or more) ledger entries • must have at least one credit and one debit • credits and debits must balance
- 76. THE OBJECT MODEL • Each ledger line item belongs to a ledger • Each ledger line item has two (or more) ledger entries • must have at least one credit and one debit • credits and debits must balance • These objects must be transactional
- 77. SQL-BASED OBJECT MODEL @debit = Entry.new(:account => 'Cash', :amount => 100.00, :type => 'credit') @credit = Entry.new(:account => 'Notes Pay.', :amount => 100.00, :type => 'debit') @line_item = LineItem.new(:ledger_id => 1, :entries => [@debit, @credit])
- 78. SQL-BASED OBJECT MODEL @debit = Entry.new(:account => 'Cash', :amount => 100.00, :type => 'credit') @credit = Entry.new(:account => 'Notes Pay.', :amount => 100.00, :type => 'debit') @line_item = LineItem.new :ledger_id => 1, :entries => [@debit, @credit] In a relational schema, we need a database transaction to ensure multi-row atomicity
- 79. SQL-BASED OBJECT MODEL @debit = Entry.new(:account => 'Cash', :amount => 100.00, :type => 'credit') @credit = Entry.new(:account => 'Notes Pay.', :amount => 100.00, :type => 'debit') @line_item = LineItem.new :ledger_id => 1, :entries => [@debit, @credit] Because we need to create 3 new records in the database here
- 80. MONGO-FIED MODELING @line_item = LineItem.new(:ledger_id => 1, :entries => [ {:account => 'Cash', :type => 'debit', :amount => 100}, {:account => 'Notes pay.', :type => 'debit', :amount => 100} ] )
- 81. MONGO-FIED MODELING @line_item = LineItem.new(:ledger_id => 1, :entries => [ {:account => 'Cash', :type => 'debit', :amount => 100}, {:account => 'Notes pay.', :type => 'debit', :amount => 100} ] ) This is the perfect case for embedded documents.
- 82. MONGO-FIED MODELING @line_item = LineItem.new(:ledger_id => 1, :entries => [ {:account => 'Cash', :type => 'debit', :amount => 100}, {:account => 'Notes pay.', :type => 'debit', :amount => 100} ] ) We will never have more than a few entries (usually two)
- 83. MONGO-FIED MODELING @line_item = LineItem.new(:ledger_id => 1, :entries => [ {:account => 'Cash', :type => 'debit', :amount => 100}, {:account => 'Notes pay.', :type => 'debit', :amount => 100} ] ) Embedded docs are perfect for “contains” many relationships
- 84. MONGO-FIED MODELING @line_item = LineItem.new(:ledger_id => 1, :entries => [ {:account => 'Cash', :type => 'debit', :amount => 100}, {:account => 'Notes pay.', :type => 'debit', :amount => 100} ] ) DB-level transactions no-longer needed. Mongo has single document atomicity.
- 85. WINS
- 86. WINS • Simplified, de-normalized data model • Objects modeled differently in Mongo than SQL
- 87. WINS • Simplified, de-normalized data model • Objects modeled differently in Mongo than SQL • Simpler data model + no transactions = WIN
- 88. LOGGING WITH CAPPED COLLECTIONS
- 89. BASELESS STATISTIC 95% of the time logs are NEVER used.
- 90. MOST LOGS ARE ONLY USED WHEN SOMETHING GOES WRONG
- 91. CAPPED COLLECTIONS • Fixed-sized, limited operation, auto age-out collections (kinda like memcached, except persistent) • Fixed insertion order • Super fast (faster than normal writes) • Ideal for logging and caching
- 92. GREAT. WHAT’S THAT MEAN? We can log additional pieces of arbitrary data effortlessly due to Mongo’s schemaless nature.
- 93. THIS IS AWESOME
- 95. ALSO A REALLY HANDY TROUBLESHOOTING TOOL
- 96. User-reported errors are difficult to diagnose
- 97. Wouldn’t it be useful to see the complete click-path?
- 98. BUNYAN http://github.com/ajsharp/bunyan Thin ruby layer around a MongoDB capped collection
- 99. BUNYAN http://github.com/ajsharp/bunyan Still needs a middleware api. Want to contribute?
- 100. require 'bunyan' Bunyan::Logger.configure do database 'my_bunyan_db' collection "#{Rails.env}_bunyan_log" size 1073741824 # 1.gigabyte end
- 101. PAPERMILL http://github.com/ajsharp/papermill SINATRA FRONT-END TO BUNYAN
- 104. BLOGGING APPLICATION
- 105. BLOGGING APPLICATION Much easier to model with Mongo than a relational database
- 106. BLOGGING APPLICATION A post has an author
- 107. BLOGGING APPLICATION A post has an author A post has many tags
- 108. BLOGGING APPLICATION A post has an author A post has many tags A post has many comments
- 109. BLOGGING APPLICATION A post has an author A post has many tags A post has many comments Instead of joining separate tables, we can use embedded documents.
- 110. MONGOMAPPER
- 111. MONGOMAPPER •MongoDB “ORM” developed by John Nunemaker
- 112. MONGOMAPPER •MongoDB “ORM” developed by John Nunemaker •Very similar syntax to DataMapper
- 113. MONGOMAPPER •MongoDB “ORM” developed by John Nunemaker •Very similar syntax to DataMapper •Declarative rather than inheritance-based
- 114. MONGOMAPPER •MongoDB “ORM” developed by John Nunemaker •Very similar syntax to DataMapper •Declarative rather than inheritance-based •Very easy to drop into rails
- 115. MONGOMAPPER require 'mongo' connection = Mongo::Connection.new.db("blog_app") class Post include MongoMapper::Document belongs_to :author, :class_name => "User" key :title, String, :required => true key :body, String, :required => true key :author_id, Integer, :required => true key :published_at, Time key :published, Boolean, :default => false key :tags, Array, :default => [] timestamps! end
- 117. WINS
- 118. WINS Simpler persistence model matches simple object model
- 119. NEXT STEPS
- 120. OBJECT-DOCUMENT MAPPERS • Ruby mongo driver • github.com/mongodb/mongo-ruby-driver • MongoMapper • github.com/jnunemaker/mongomapper • Mongoid • github.com/durran/mongoid
- 121. MONGOMAPPER • DataMapper-like API • good for moving from a sql schema to mongo • easy to drop into rails • works with rails 3
- 122. MONGOID • DataMapper-like API • uses ActiveModel, so familiar validation syntax • more opinionated towards embedded docs • easy to drop into rails • rails 2 - mongoid 1.x • rails 3 - mongoid 2.x
- 123. mongodb.org
- 124. MOST IMPORTANTLY ...
- 125. WE MUST ARRIVE AT THE WHISKEY BAR EARLIER TOMORROW

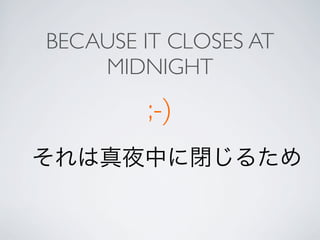

- 126. BECAUSE IT CLOSES AT MIDNIGHT ;-)

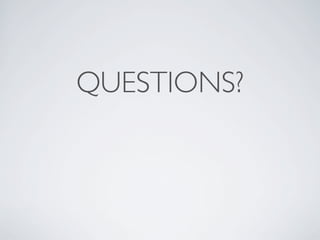

- 127. QUESTIONS?
- 128. THANKS!
