![Spark Internals
The Key Idea
Resilient Distributed Datasets
• Basic unit of abstraction of data
• Immutable
• Persistance
>>> data = [90, 14, 20, 86, 43, 55, 30, 94 ]
>>> distData = sc.parallelize(data)
ParallelCollectionRDD[13] at parallelize at
PythonRDD.scala:364](https://image.slidesharecdn.com/spark-150511063017-lva1-app6891/85/Python-and-Bigdata-An-Introduction-to-Spark-PySpark-13-320.jpg)
![Spark Internals
>>> increment_rdd = distData.map(mapFunc)
>>> increment_rdd.collect()
[91, 15, 21, 87, 44, 56, 31, 95]
>>>
>>> increment_rdd.filter(filterFunc).collect()
[44, 56]
OR
>>> distData.map(mapFunc).filter(filterFunc).collect()
[44, 56]](https://image.slidesharecdn.com/spark-150511063017-lva1-app6891/85/Python-and-Bigdata-An-Introduction-to-Spark-PySpark-20-320.jpg)
Python and Bigdata - An Introduction to Spark (PySpark)
- 1. Python and Big data - An Introduction to Spark (PySpark) Hitesh Dharmdasani
- 2. About me • Security Researcher, Malware Reversing Engineer, Developer • GIT > GMU > Berkeley > FireEye > On Stage • Bootstrapping a few ideas • Hiring! Information Security Big Data Machine Learning Me
- 3. What we will talk about? • What is Spark? • How does spark do things • PySpark and data processing primitives • Example Demo - Playing with Network Logs • Streaming and Machine Learning in Spark • When to use Spark http://bit.do/PyBelgaumSpark http://tinyurl.com/PyBelgaumSpark
- 4. What will we NOT talk about • Writing production level jobs • Fine Tuning Spark • Integrating Spark with Kafka and the like • Nooks and Crooks of Spark • But glad to talk about it offline

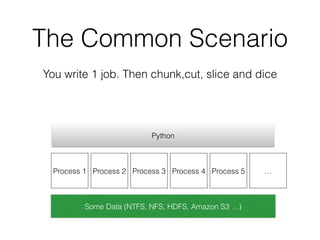

- 5. The Common Scenario Some Data (NTFS, NFS, HDFS, Amazon S3 …) Python Process 1 Process 2 Process 3 Process 4 Process 5 … You write 1 job. Then chunk,cut, slice and dice
- 6. Compute where the data is • Paradigm shift in computing • Don't load all the data into one place and do operations • State your operations and send code to the machine • Sending code to machine >>> Getting data over network
- 7. MapReduce public static MyFirstMapper { public void map { . . . } } public static MyFirstReducer { public void reduce { . . . } } public static MySecondMapper { public void map { . . . } } public static MySecondReducer { public void reduce { . . . } } Job job = new Job(conf, “First"); job.setMapperClass(MyFirstMapper .class); job.setReducerClass(MyFirstReduc er.class); /*Job 1 goes to Disk */ if(job.isSuccessful()) { Job job2 = new Job(conf,”Second”); job2.setMapperClass(MySecondMap per.class); job2.setReducerClass(MySecondRe ducer.class); } This also looks ugly if you ask me!
- 8. What is Spark? • Open Source Lighting Fast Cluster Computing • Focus on Speed and Scale • Developed at AMP Lab, UC Berkeley by Matei Zaharia • Most active Apache Project in 2014 (Even more than Hadoop) • Recently beat MapReduce in sorting 100TB of data by being 3X faster and using 10X fewer machines
- 9. What is Spark? Spark Some Data (NTFS, NFS, HDFS, Amazon S3 …) Java Python Scala MLLib Streaming ETL SQL ….GraphX
- 10. What is Spark? Spark Some Data (NTFS, NFS, HDFS, Amazon S3 …) • Inherently distributed • Computation happens where the data resides
- 11. What is different from MapReduce • Uses main memory for caching • Dataset is partitioned and stored in RAM/Disk for iterative queries • Large speedups for iterative operations when in- memory caching is used
- 12. Spark Internals The Init • Creating a SparkContext • It is Sparks’ gateway to access the cluster • In interactive mode. SparkContext is created as ‘sc’ $ pyspark ... ... SparkContext available as sc. >>> sc <pyspark.context.SparkContext at 0xdeadbeef>
- 13. Spark Internals The Key Idea Resilient Distributed Datasets • Basic unit of abstraction of data • Immutable • Persistance >>> data = [90, 14, 20, 86, 43, 55, 30, 94 ] >>> distData = sc.parallelize(data) ParallelCollectionRDD[13] at parallelize at PythonRDD.scala:364
- 14. Spark Internals Operations on RDDs - Transformations & Actions
- 16. Spark Internals Lazy Evaluation Now what?
- 18. Spark Internals Transformation Operations on RDDs Map def mapFunc(x): return x+1 rdd_2 = rdd_1.map(mapFunc) Filter def filterFunc(x): if x % 2 == 0: return True else: return False rdd_2 = rdd_1.filter(filterFunc)
- 19. Spark Internals Transformation Operations on RDDs • map • filter • flatMap • mapPartitions • mapPartitionsWithIndex • sample • union • intersection • distinct • groupByKey
- 20. Spark Internals >>> increment_rdd = distData.map(mapFunc) >>> increment_rdd.collect() [91, 15, 21, 87, 44, 56, 31, 95] >>> >>> increment_rdd.filter(filterFunc).collect() [44, 56] OR >>> distData.map(mapFunc).filter(filterFunc).collect() [44, 56]
- 21. Spark Internals Fault Tolerance and Lineage
- 22. Moving to the Terminal
- 24. ML Lib • Machine Learning Primitives in Spark • Provides training and classification at scale • Exploits Sparks’ ability for iterative computation (Linear Regression, Random Forest) • Currently the most active area of work within Spark
- 25. How can I use all this? HDFS Spark + ML Lib Load Tweets Bad Tweets Model Live Tweets Good Bad Report to Twitter Spark Streaming
- 26. To Spark or not to Spark • Iterative computations • “Don't fix something that is not broken” • Lesser learning barrier • Large one-time compute • Single Map Reduce Operation
