GeneticAlgorithmPython is an open source Python project for implementing the genetic algorithm based on NumPy. Based on this project, a Python library named PyGAD is available at PyPI: https://pypi.org/project/pygad. To install PyGAD using pip, just issue this command:

pip install pygad

The project has a single module named pygad.py which contains a class named GA. There is a script named example.py in which an example is given for using the pygad.py module.

Simply, to run the genetic algorithm all you need to do is to create an instance of the GA class and pass the appropriate parameters to its constructor. The GA class has all the required parameters and methods for implementing the genetic algorithm.

The documentation starts by discussing the available parameters in addition to the steps of using the library. Note that the PyGAD library is a reflection to the GeneticAlgorithmPython GitHub project. As a result, the documentation can either use project or library interchangeably.

The single module available in the PyGAD library is named pygad.py and contains a class named GA. For creating an instance of this class, there are a number of parameters that allows the user to customize the genetic algorithm. Before running the GA, the parameters must be prepared. The list of all supported parameters is as follows:

• num_generations : Number of generations.
• sol_per_pop : Number of solutions (i.e. chromosomes) within the population.
• num_parents_mating : Number of solutions to be selected as parents.
• num_genes: Number of genes in the solution/chromosome.
• fitness_func : A function for calculating the fitness value for each solution. Added in PyGAD 1.0.17.
• init_range_low=-4: The lower value of the random range from which the gene values in the initial population are selected. init_range_low defaults to -4. Added in PyGAD 1.0.18.
• init_range_high=4: The upper value of the random range from which the gene values in the initial population are selected. init_range_high defaults to +4. Added in PyGAD 1.0.18.
• parent_selection_type="sss" : The parent selection type. Supported types are sss (for steady state selection), rws (for roulette wheel selection), sus (for stochastic universal selection), rank (for rank selection), random (for random selection), and tournament (for tournament selection).
• keep_parents=-1 : Number of parents to keep in the current population. -1 (default) means keep all parents in the next population. 0 means keep no parents in the next population. A value greater than 0 means keep the specified number of parents in the next population. Note that the value assigned to keep_parents cannot be < - 1 or greater than the number of solutions within the population sol_per_pop.
• K_tournament=3 : In case that the parent selection type is tournament, the K_tournament specifies the number of parents participating in the tournament selection. It defaults to 3.
• crossover_type="single_point" : Type of the crossover operation. Supported types are single_point (for single point crossover), two_points (for two points crossover), and uniform (for uniform crossover). It defaults to single_point.
• mutation_type="random" : Type of the mutation operation. Supported types are random (for random mutation), swap (for swap mutation), inversion (for inversion mutation), and scramble (for scramble mutation). It defaults to random.
• mutation_percent_genes=10 : Percentage of genes to mutate which defaults to 10. Out of this percentage, the number of genes to mutate is deduced. This parameter has no action if the parameter mutation_num_genes exists.
• mutation_num_genes=None : Number of genes to mutate which defaults to None meaning that no number is specified. If the parameter mutation_num_genes exists, then no need for the parameter mutation_percent_genes.
• random_mutation_min_val=-1.0 : For random mutation, the random_mutation_min_val parameter specifies the start value of the range from which a random value is selected to be added to the gene. It defaults to -1.
• random_mutation_max_val=1.0 : For random mutation, the random_mutation_max_val parameter specifies the end value of the range from which a random value is selected to be added to the gene. It defaults to +1.

The user doesn't have to specify all of such parameters while creating an instance of the GA class. A very important parameter you must care about is fitness_func which defines the fitness function.

It is OK to set the value of any of the 2 parameters init_range_low and init_range_high to be equal, higher or lower than the other parameter (i.e. init_range_low is not needed to be lower than init_range_high).

Next, the steps of using the PyGAD library are discussed.

To use PyGAD, here is a summary of the required steps:

1. Preparing the fitness_func parameter.
2. Preparing other parameters.
3. Example of preparing the parameters.
4. Import the pygad.py module.
5. Create an instance of the GA class.
6. Run the genetic algorithm.
7. Plotting Results.
8. Saving & Loading the Results.

Let's discuss how to do each of these steps.

Even there are a number of steps in the genetic algorithm pipeline that can work the same regardless of the problem being solved, one critical step is the calculation of the fitness value. There is no unique way of calculating the fitness value and it changes from one problem to another.

On 15 April 2020, a new argument named fitness_func is added that allows the user to specify a custom function to be used as a fitness function. This function must be a maximization function so that a solution with a high fitness value returned is selected compared to a solution with a low value. Doing that allows the user to freely use the library to solve any problem by passing the appropriate fitness function.

Let's discuss an example:

Given the following function: y = f(w1:w6) = w1x1 + w2x2 + w3x3 + w4x4 + w5x5 + 6wx6 where (x1,x2,x3,x4,x5,x6)=(4,-2,3.5,5,-11,-4.7) and y=44 What are the best values for the 6 weights (w1 to w6)? We are going to use the genetic algorithm to optimize this function.

So, the task is about using the genetic algorithm to find the best values for the 6 weight W1 to W6. Thinking of the problem, it is clear that the best solution is that returning an output that is close to the desired output y=44. So, the fitness function should return a value that gets higher when the solution's output is closer to y=44. Here is a function that does that. The function must accept a single parameter which is a 1D vector representing a single solution.

function_inputs = [4,-2,3.5,5,-11,-4.7] # Function inputs.
desired_output = 44 # Function output.

def fitness_func(solution):
    output = numpy.sum(solution*function_inputs)
    fitness = 1.0 / numpy.abs(output - desired_output)
    return fitness

By creating this function, you are ready to use the library.

Here is an example for preparing the parameters:

num_generations = 50
sol_per_pop = 8
num_parents_mating = 4

init_range_low = -2
init_range_high = 5

mutation_percent_genes = 10

parent_selection_type = "sss"

crossover_type = "single_point"

mutation_type = "random"

keep_parents = 1

num_genes = len(function_inputs)

After the parameters are prepared, we can import the pygad module and build an instance of the GA class.

The next step is to import the pygad module as follows:

import pygad

This module has a class named GA which holds the implementation of all methods for running the genetic algorithm.

The GA class is instantiated where the previously prepared parameters are fed to its constructor. The constructor is responsible for creating the initial population.

ga_instance = ga.GA(num_generations=num_generations,
          sol_per_pop=sol_per_pop,
          num_parents_mating=num_parents_mating,
          num_genes=num_genes,
          fitness_func=fitness_func,
          init_range_low=init_range_low,
          init_range_high=init_range_high,
          mutation_percent_genes=mutation_percent_genes,
          mutation_num_genes=mutation_num_genes,
          parent_selection_type=parent_selection_type,
          crossover_type=crossover_type,
          mutation_type=mutation_type,
          keep_parents=keep_parents,
          K_tournament=3)

After an instance of the GA class is created, the next step is to call the run() method as follows:

ga_instance.run()

Inside this method, the genetic algorithm evolves over a number of generations by doing the following tasks:

1. Calculating the fitness values of the solutions within the current population.
2. Select the best solutions as parents in the mating pool.
3. Apply the crossover & mutation operation
4. Repeat the process for the specified number of generations.

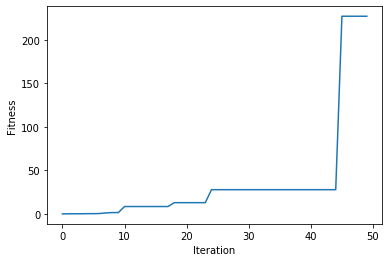

There is a method named plot_result() which creates a figure summarizing how the fitness values of the solutions change with the generations .

ga_instance.plot_result()

After the run() method completes, it is possible to save the current instance of the genetic algorithm to avoid losing the progress made. The save() method is available for that purpose. According to the next code, a file named genetic.pkl will be created and saved in the current directory.

# Saving the GA instance.
filename = 'genetic' # The filename to which the instance is saved. The name is without extension.
ga_instance.save(filename=filename)

You can also load the saved model using the load() function and continue using it. For example, you might run the genetic algorithm for a number of generations, save its current state using the save() method, load the model using the load() function, and then call the run() method again.

# Loading the saved GA instance.
loaded_ga_instance = ga.load(filename=filename)

After the instance is loaded, you can use it to run any method or access any property.

print(loaded_ga_instance.best_solution())

The library supports different types for selecting the parents and applying the crossover & mutation operators. More features will be added in the future. To ask for a feature, please open an issue in the GitHub project: https://github.com/ahmedfgad/GeneticAlgorithmPython/issues/new

The supported crossover operations at this time are:

• Single point.
• Two points.
• Uniform.

The supported mutation operations at this time are:

• Random
• Swap
• Inversion
• Scramble

The supported parent selection techniques at this time are:

• Steady state
• Roulette wheel
• Stochastic universal
• Rank
• Random
• Tournament

More types will be added in the future. You can also ask for supporting more types by opening an issue in the GitHub project associated with the library: https://github.com/ahmedfgad/GeneticAlgorithmPython

PyGAD 1.0.17 (15 April 2020):

1. The GA class accepts a new argument named fitness_func which accepts a function to be used for calculating the fitness values for the solutions. This allows the project to be customized to any problem by building the right fitness function.

PyGAD 1.0.18 (4 May 2020):

1. The attributes are moved from the class scope to the instance scope.
2. Raising a ValueError exception on passing incorrect values to the parameters.
3. Two new parameters are added (init_range_low and init_range_high) allowing the user to customize the range from which the genes values in the initial population are selected.
4. The code object __code__ of the passed fitness function is checked to ensure it has the right number of parameters.

To start with coding the genetic algorithm, you can check the tutorial titled Genetic Algorithm Implementation in Python available at these links:

• https://www.linkedin.com/pulse/genetic-algorithm-implementation-python-ahmed-gad

• https://towardsdatascience.com/genetic-algorithm-implementation-in-python-5ab67bb124a6

This tutorial is prepared based on a previous version of the project but it still a good resource to start with coding the genetic algorithm.

You can also check my book cited as Ahmed Fawzy Gad 'Practical Computer Vision Applications Using Deep Learning with CNNs'. Dec. 2018, Apress, 978-1-4842-4167-7.

Important Note

The library just supports the decimal representation for the chromosome and there is no current support for binary representations. The library is updated and soon support for the binary version will be available.
