Node.js Tutorial for Beginners | Node.js Web Application Tutorial | Node.js Training | Edureka

www.edureka.co/mastering-node-jsEDUREKA NODE JS CERTIFICATION TRAINING
Webpage

Agenda
❖ Client Server Architecture
❖ Limitations of Multi–Threaded Model
❖ What is Node.js?
❖ Features of Node.js
❖ Node.js Installation
❖ Blocking Vs. Non – Blocking I/O
❖ Creating Node.js First Program
❖ Node.js Modules
❖ Demo – Grocery List Web Application using Node.js

Client – Server Architecture

Client Server Architecture
Client 1
Client 2
Client 3
Server Database

Traditional Multi-Threaded Model
Handle Request
A
Handle Request
B
Handle Request
C
Read ResponseRead Request
Assign Thread for A
Assign Thread for C
Assign Thread for B
Thread
Thread
Thread
User HTTP Request A
User HTTP Request B
User HTTP Request C
User HTTP Request D

Limitations
of
Multi – Threaded Approach

Limitations of Multi-Threaded Models
Shared
Resources
Updating
Resources
Wants to
Update
Wants to
Update
Thread A Thread C
Thread B
➢ In a multi-threaded HTTP server, for each and every request that the server receives, it creates a separate thread
which handles that request
➢ If a request acquires a lock in the shared resource and it is ‘exclusive’, it will affect result of other requests

High chances of deadlock if application
is not designed properly
Limitations of Multi-Threaded Models
Web Servers need to handle thousands
of HTTP requests. So, many threads may
have to wait for network operations
For thousands of simultaneous requests,
spawning threads for all processes would
not achieve the desired scalability
Scalability
Complex
Deadlock

What is Node.js ?

What is Node.js?
➢Node.js is an open source runtime environment for server-side and networking applications and is single threaded.
➢Uses Google JavaScript V8 Engine to execute code.
➢It is cross platform environment and can run on OS X, Microsoft Windows, Linux, FreeBSD, NonStop and IBM.
➢Provides an event driven architecture and non blocking I/O that is optimized and scalable.
N O D E

Features of Node.js

Features of Node.js
1. Asynchronous
Caller Recipient
request
response
callback
➢ When request is made to server, instead of waiting for the request to complete, server continues to
process other requests
➢ When request processing completes, the response is sent to caller using callback mechanism
Asynchronous Model
Asynchronous
Event Driven
Very Fast
Scalable

Features of Node.js
➢ When request is made to server, instead of waiting for the request to complete, server continues to
process other requests
➢ When request processing completes, the response is sent to caller using callback mechanism
Event Emitters
Event Loop
(Single - threaded)
File System
Network
Process
Other
Event Queue
Thread Pool
2. Single Threaded and Event Driven:
Asynchronous
Event Driven
Very Fast
Scalable

Features of Node.js
3. Very Fast
4. Single Threaded but Highly Scalable
Being built on Google Chrome's V8 JavaScript Engine, Node.js library is very fast in code
execution.
Node.js is highly scalable because event mechanism helps the server to respond in a non-
blocking way.
Asynchronous
Event Driven
Very Fast
Scalable

Node.js Installation

EDUREKA NODE JS CERTIFICATION TRAINING www.edureka.co/mastering-node-js
Go to https://nodejs.org/en/1
Download and Install2

Open node.js command prompt3
➢ node –version
Check the version of Node.js
installed

Creating Your First Node.js Program

Node.js First Program
Create a Directory: mkdir node_example1
Create a File: first_example.js2
Go to the node_example directory3
Execute the java script file: node first_example.js4
2
1
3
4

Simple Web Application Example

Example:
Importing Module:
‘require’ is used to load a Node.js modules.
1
Example:
Creating Server
➢ Used to create web server object
➢ Function (request, response) is called once for
every HTTP request to the server, so it's called
the request handler.
2
listen(<port_no>)
Bind the server instance for listening to a particular port.3
Example:

1 Import HTTP Module
2 Define Port No.
3 Creating Server Instance
4 Sending HTTP Header
6
Binding Server Instance
with the Port No. 3000
5 Sending Data

Blocking vs Non - Blocking

Blocking vs Non–Blocking I/O
➢ Blocking is when the execution of additional JavaScript in the Node.js process must wait until a non-JavaScript
operation completes.
➢ "I/O" refers primarily to interaction with the system's disk and network supported by libuv.
More methods will be blocked till
the read method is not executed
More method will execute
asynchronously
(non-blocking way)

Non – Blocking Example:

Blocking Example:
C O N C L U S I O N :
➢ In case of Asynchronous (non-blocking ), once file I/O is complete, it will call the callback function
➢ This allows Node.js to be scalable and process large number of request without worrying about blocking I/O

Node.js Modules
02
GLOBALS
03
FILE SYSTEM
04
CALLBACKS
05
EVENT
06
HTTP
01
NPM

NPM
➢ NPM stands for Node Package Manager
➢ Provides online repositories for node.js packages/modules
➢ Provides command line utility to install Node.js packages along with version management and dependency
management.

NPM
npm install Install all the modules as specified in package.json
npm install <Module Name> Install Module using npm
npm install <Module Name> -g Install dependency globally

Basic Concepts:
02
GLOBALS
03
FILE SYSTEM
04
CALLBACKS
05
EVENT
06
HTTP
01
NPM

Global Objects
These objects are available in all modules and therefore, are referred as Global Objects
specifies the name of the directory that currently contains the code.
__dirname
specifies the name of the file that currently contains the code.
__filename

Global Objects
A timer in Node.js is an internal construct that calls a given function after a certain period of time.
setTimeout(callback, delay[, ...args])
➢ Schedules execution of a one-time callback after delay milliseconds
➢ Returns a Timeout for use with clearTimeout( )
setInterval(callback, delay[, ...args])
➢ Schedules repeated execution of callback every delay milliseconds.
➢ Returns a Timeout for use with clearTimeout( )
setImmediate(callback, [,..args])
➢ Schedules an immediate execution of the callback after I/O events' callbacks but
before setTimeout() and setInterval() timers are triggered.
➢ Returns an Immediate for use with clearImmediate().

Global Objects
output

File System
File I/O is provided by simple wrappers around standard POSIX functions. For importing File
System Module (fs), we use: var fs = require("fs");
All methods have asynchronous and synchronous formsImportant Note:
FS Methods
Asynchronous
Forms
Synchronous
Forms
1
var fs = require("fs");
// Asynchronous read
fs.readFile(‘test.txt', function (err, data) { });
// Synchronous read
var data = fs.readFileSync('input.txt');

File System
The asynchronous form always takes a completion callback as its last argument.
fs.readFile(‘test.txt’, function (err, data) {
if (err) {
return console.error(err);
}
console.log(data.toString());
});
FS Methods
Arg 1
Callback Method
(last argument)
Arg 2
Arg 3
Callback As Last Arg.
Important Note: 2

File System
First argument in completion callback is always reserved for an exceptionImportant Note: 3
Callback
Method
Arg 1: exception
Arg N
Arg 2
Arg 3
fs.readFile(‘test.txt’, function (err, data) {
if (err) {
return console.error(err);
}
console.log(data.toString());
});
Reserved for
exception
returns null or undefined
(successful completion)

Some Methods in File System Module – Open()
fs.open( path, flags[, mode], callback )
fs.openSync( path, flags[, mode] )
fs.close( fd, callback )
➢ var fs = require(‘fs’);
Open File Asynchronously
Open File Synchronously
Closing File
Arguments Description
Path < string > Path of the file
Flags < string > Access Modifiers
Mode < integer > sets the permission and sticky bits, but only if the file was created
Callback < function > Callback signature - function(err, fd)

Flag Modes in Open Method
Modes Description
r Open file for reading. an exception occurs if the file does not exist
r+ Open file for reading and writing. Exception: if the file does not exist
w Open file for writing. The file is created ( if it does not exist) or truncated (if it exists)
wx Like 'w' but fails if path exists
w+ Open file for reading and writing. File is created (if it does not exist) or truncated (if it exists)
wx+ Same as 'w+' but fails if path exists
a Open file for appending. The file is created if it does not exist
ax Like 'a' but fails if path exists
a+ open file for reading and appending. the file is created if it does not exist.
ax+ Like 'a+' but fails if path exists

Some Methods in File System Module – Read()
read(fd, buffer, offset, length, position, callback)
readFile(file[, options], callback)
readFileSync(file[, options])
Read Content of a File into Buffer
Reads File Asynchronously
fd < integer > File Descriptor
buffer <string | Buffer | Unit8Array > The buffer that the data will be written to.
offset < integer > Offset in the buffer to start writing at.
length < integer > Specifies the number of bytes to read.
position < integer > Specifies where to begin reading from in the file
Callback < function > Read Callback signature - function(err, bytesRead, buffer)
Reads File Synchronously

Some Methods in File System Module – Write()
writeFile(file, data[, options], callback)
writeFileSync(file, data[, options])
Writes into a File Asynchronously
File Filename or File Descriptor
Data The buffer that the data will be written to.
Options: Encoding, Mode or flag
Callback < function > Callback signature - function(err, bytesRead, buffer)
Writes into a File Synchronously

Some Methods in File System Module – Write()
Callback is an asynchronous equivalent for a function and is called at the completion of each task
Callback: will execute after
file read is complete
Output:

Events
➢ Node.js follows event-driven architecture where certain objects (called "emitters") periodically emit
named events which further invokes the listeners (function).
➢ Node.js provide concurrency by using the concept of events and callbacks
➢ All objects that emit events are instances of the EventEmitter class.
var eventEmitter = event.EventEmitter();
Importing ‘events’ module
Object of EventEmitter Class
eventEmitter.emit(‘event’)
Registering listeners
Trigger event
eventEmitter.on(‘event’, eventHandler)
var event = require(‘events’);

Events
Import Events Module
Creating object of EventEmitter
Emitting event
Registering Listener and defining
event handler
OUTPUT

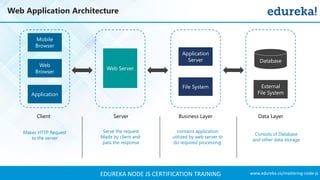

Web Application Architecture
Client Client Client Client
Mobile
Browser
Web
Browser
Application
Web Server
Application
Server
File System
Database
External
File System
Client Server Business Layer Data Layer
Makes HTTP Request
to the server
Serve the request
Made by client and
pass the response
contains application
utilized by web server to
do required processing.
Consists of Database
and other data storage

HTTP
Import Required Modules
Creating Server
Parse the fetched URL to get pathname
Request file to be read from file system
(index.html)
Creating Header with content type as text or HTML
Generating Response
Listening to port: 3000

HTTP
Index.html
Output
Node.js cmd

Express

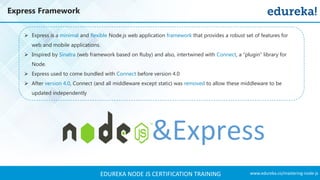

Express Framework
➢ Express is a minimal and flexible Node.js web application framework that provides a robust set of features for
web and mobile applications.
➢ Inspired by Sinatra (web framework based on Ruby) and also, intertwined with Connect, a “plugin” library for
Node.
➢ Express used to come bundled with Connect before version 4.0
➢ After version 4.0, Connect (and all middleware except static) was removed to allow these middleware to be
updated independently

Express Framework
Importing express module
Retrieve resources
Sending html doc as response
Listening to port: 3000

RESTful API
REST stands for REpresentational State Transfer.
Used create a new resource
or update a existing
resource
1 POST
Used to provide a read
only access to a resource
2 GET
Used to create a update
a resource
3 PUT
Used to remove a resource
4 DELETE
C R U DCreate Delete
Read Update

Popular Frameworks Around
Node.js

Popular Frameworks Around Node.js
E X P R E S S
Minimalistic Web
Framework based on
Node.js
S A I L S
Project generator,
Middleware and
Templating Engine
M E T E O R
Full Stack Framework
that covers server,
mobile, desktop & web
apps
K O A
Web Framework
designed by the team
behind Express
N O D E

Demo:
Grocery List Web Application

Thank You …
Questions/Queries/Feedback

Node.js Tutorial for Beginners | Node.js Web Application Tutorial | Node.js Training | Edureka

More Related Content

What's hot (20)

Similar to Node.js Tutorial for Beginners | Node.js Web Application Tutorial | Node.js Training | Edureka (20)

More from Edureka! (20)

Recently uploaded (20)

Node.js Tutorial for Beginners | Node.js Web Application Tutorial | Node.js Training | Edureka
