2
Agenda
 What is a function?
 Types of C++
functions:
 Standard functions
 User-defined functions
 C++ function structure
 Function signature
 Function body
 Declaring and
Implementing C++
functions
 Sharing data among
functions through
function parameters
 Value parameters
 Reference parameters
 Const reference
parameters
 Scope of variables
 Local Variables
 Global variable

3
Functions and subprograms
 The Top-down design appeoach is based on dividing the
main problem into smaller tasks which may be divided
into simpler tasks, then implementing each simple task
by a subprogram or a function
 A C++ function or a subprogram is simply a chunk of
C++ code that has
 A descriptive function name, e.g.
 computeTaxes to compute the taxes for an employee
 isPrime to check whether or not a number is a prime number
 A returning value
 The computeTaxes function may return with a double number
representing the amount of taxes
 The isPrime function may return with a Boolean value (true or false)

4
C++ Standard Functions
 C++ language is shipped with a lot of functions
which are known as standard functions
 These standard functions are groups in different
libraries which can be included in the C++
program, e.g.
 Math functions are declared in <math.h> library
 Character-manipulation functions are declared in
<ctype.h> library
 C++ is shipped with more than 100 standard libraries,
some of them are very popular such as <iostream.h>
and <stdlib.h>, others are very specific to certain
hardware platform, e.g. <limits.h> and <largeInt.h>

5
Example of Using
Standard C++ Math Functions
#include <iostream.h>
#include <math.h>
void main()
{
// Getting a double value
double x;
cout << "Please enter a real number: ";
cin >> x;
// Compute the ceiling and the floor of the real number
cout << "The ceil(" << x << ") = " << ceil(x) << endl;
cout << "The floor(" << x << ") = " << floor(x) << endl;
}

6
Example of Using
Standard C++ Character Functions
#include <iostream.h> // input/output handling
#include <ctype.h> // character type functions
void main()
{
char ch;
cout << "Enter a character: ";
cin >> ch;
cout << "The toupper(" << ch << ") = " << (char) toupper(ch) << endl;
cout << "The tolower(" << ch << ") = " << (char) tolower(ch) << endl;
if (isdigit(ch))
cout << "'" << ch <<"' is a digit!n";
else
cout << "'" << ch <<"' is NOT a digit!n";
}
Explicit casting

7

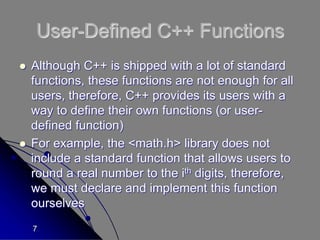

User-Defined C++ Functions
 Although C++ is shipped with a lot of standard
functions, these functions are not enough for all
users, therefore, C++ provides its users with a
way to define their own functions (or user-
defined function)
 For example, the <math.h> library does not
include a standard function that allows users to
round a real number to the ith digits, therefore,
we must declare and implement this function
ourselves

8
How to define a C++ Function?
 Generally speaking, we define a C++
function in two steps (preferably but not
mandatory)
 Step #1 – declare the function signature in
either a header file (.h file) or before the main
function of the program
 Step #2 – Implement the function in either an
implementation file (.cpp) or after the main
function

9
What is The Syntactic Structure of
a C++ Function?
 A C++ function consists of two parts
 The function header, and
 The function body
 The function header has the following
syntax
<return value> <name> (<parameter list>)
 The function body is simply a C++ code
enclosed between { }

10
Example of User-defined
C++ Function
double computeTax(double income)
{
if (income < 5000.0) return 0.0;
double taxes = 0.07 * (income-5000.0);
return taxes;
}

11
{
return taxes;
}
C++ Function
Function
header

12
C++ Function
{
return taxes;
}
Function
header
Function
body

13
Function Signature
 The function signature is actually similar to
the function header except in two aspects:
 The parameters’ names may not be specified
in the function signature
 The function signature must be ended by a
semicolon
 Example
double computeTaxes(double) ;
Unnamed
Parameter
Semicolon
;

14
Why Do We Need Function
Signature?
 For Information Hiding
 If you want to create your own library and share it with
your customers without letting them know the
implementation details, you should declare all the
function signatures in a header (.h) file and distribute
the binary code of the implementation file
 For Function Abstraction
 By only sharing the function signatures, we have the
liberty to change the implementation details from time
to time to
 Improve function performance
 make the customers focus on the purpose of the function, not
its implementation

15
Example
#include <iostream>
#include <string>
using namespace std;
// Function Signature
double getIncome(string);
double computeTaxes(double);
void printTaxes(double);
void main()
{
// Get the income;
double income = getIncome("Please enter
the employee income: ");
// Compute Taxes
double taxes = computeTaxes(income);
// Print employee taxes
printTaxes(taxes);
}
double computeTaxes(double income)
{
if (income<5000) return 0.0;
return 0.07*(income-5000.0);
}
double getIncome(string prompt)
{
cout << prompt;
double income;
cin >> income;
return income;
}
void printTaxes(double taxes)
{
cout << "The taxes is $" << taxes << endl;
}

16
Building Your Libraries
 It is a good practice to build libraries to be
used by you and your customers
 In order to build C++ libraries, you should
be familiar with
 How to create header files to store function
signatures
 How to create implementation files to store
function implementations
 How to include the header file to your
program to use your user-defined functions

17
C++ Header Files
 The C++ header files must have .h
extension and should have the following
structure
 #ifndef compiler directive
 #define compiler directive
 May include some other header files
 All functions signatures with some comments
about their purposes, their inputs, and outputs
 #endif compiler directive

18
TaxesRules Header file
#ifndef _TAXES_RULES_
#define _TAXES_RULES_
#include <iostream>
#include <string>
using namespace std;
double getIncome(string);
// purpose -- to get the employee
income
// input -- a string prompt to be
displayed to the user
// output -- a double value
representing the income
double computeTaxes(double);
// purpose -- to compute the taxes for
a given income
// input -- a double value
representing the income
// output -- a double value
representing the taxes
void printTaxes(double);
// purpose -- to display taxes to the
user
// input -- a double value
representing the taxes
// output -- None
#endif

19
TaxesRules Implementation File
#include "TaxesRules.h"
double computeTaxes(double
income)
{
if (income<5000) return 0.0;
return 0.07*(income-5000.0);
}
double getIncome(string prompt)
{
cout << prompt;
double income;
cin >> income;
return income;
}
void printTaxes(double taxes)
{
cout << "The taxes is $" << taxes
<< endl;
}

20
Main Program File
#include "TaxesRules.h"
void main()
{
// Get the income;
double income =
getIncome("Please enter the employee income: ");
// Compute Taxes
double taxes = computeTaxes(income);
// Print employee taxes
printTaxes(taxes);
}

21
Inline Functions
 Sometimes, we use the keyword inline to define
user-defined functions
 Inline functions are very small functions, generally,
one or two lines of code
 Inline functions are very fast functions compared to
the functions declared without the inline keyword
 Example
inline double degrees( double radian)
{
return radian * 180.0 / 3.1415;
}

22
Example #1
 Write a function to test if a number is an
odd number
inline bool odd (int x)
{
return (x % 2 == 1);
}

23
Example #2
 Write a function to compute the distance
between two points (x1, y1) and (x2, y2)
Inline double distance (double x1, double y1,
double x2, double y2)
{
return sqrt(pow(x1-x2,2)+pow(y1-y2,2));
}

24
Example #3
 Write a function to compute n!
int factorial( int n)
{
int product=1;
for (int i=1; i<=n; i++) product *= i;
return product;
}

25
Example #4
Function Overloading
 Write functions to return with the maximum number of
two numbers
inline int max( int x, int y)
{
if (x>y) return x; else return y;
}
inline double max( double x, double y)
{
if (x>y) return x; else return y;
}
An overloaded
function is a
function that is
defined more than
once with different
data types or
different number
of parameters

26
Sharing Data Among
User-Defined Functions
 There are two ways to share data
among different functions
 Using global variables (very bad practice!)
 Passing data through function parameters
Value parameters
Reference parameters
Constant reference parameters

27
C++ Variables
 A variable is a place in memory that has
 A name or identifier (e.g. income, taxes, etc.)
 A data type (e.g. int, double, char, etc.)
 A size (number of bytes)
 A scope (the part of the program code that can use it)
 Global variables – all functions can see it and using it
 Local variables – only the function that declare local variables
see and use these variables
 A life time (the duration of its existence)
 Global variables can live as long as the program is executed
 Local variables are lived only when the functions that define
these variables are executed

28

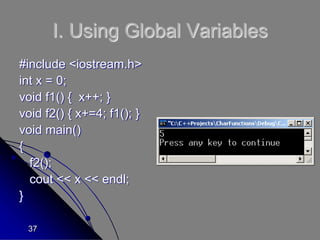

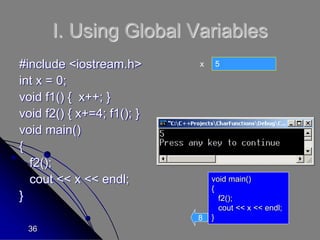

I. Using Global Variables
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}

29
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x 0

30
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x 0
void main()
{
f2();
cout << x << endl ;
}
1

31
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x 0
void main()
{
f2();
cout << x << endl ;
}
1
void f2()
{
x += 4;
f1();
}
2
4

32
4
5
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x
void main()
{
f2();
cout << x << endl ;
}
1
void f2()
{
x += 4;
f1();
}
3
void f1()
{
x++;
}
4

33
4
5
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x
void main()
{
f2();
cout << x << endl;
}
1
void f2()
{
x += 4;
f1();
}
3
void f1()
{
x++;
}
5

34
4
5
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x
void main()
{
f2();
cout << x << endl;
}
1
void f2()
{
x += 4;
f1();
}
6

35
4
5
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x
void main()
{
f2();
cout << x << endl;
}
7

36
4
5
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}
x
void main()
{
f2();
cout << x << endl;
}
8

37
int x = 0;
void f1() { x++; }
void f2() { x+=4; f1(); }
void main()
{
f2();
cout << x << endl;
}

38
What Happens When We Use
Inline Keyword?
int x = 0;
Inline void f1() { x++; }
Inline void f2() { x+=4; f1();}
void main()
{
f2();
cout << x << endl;
}

39
Inline Keyword?
int x = 0;
void main()
{
f2();
cout << x << endl;
}
0
x
void main()
{
x+=4;
x++;
cout << x << endl;
}
1
The inline keyword
instructs the compiler
to replace the function
call with the function
body!

40
Inline Keyword?
int x = 0;
void main()
{
f2();
cout << x << endl;
}
4
x
void main()
{
x+=4;
x++;
cout << x << endl;
}
2

41
Inline Keyword?
int x = 0;
void main()
{
f2();
cout << x << endl;
}
5
x
void main()
{
x+=4;
x++;
cout << x << endl;
}
3

42

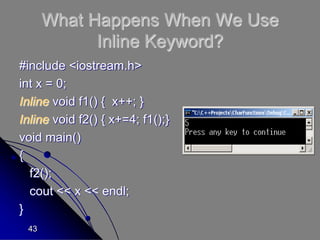

Inline Keyword?
int x = 0;
void main()
{
f2();
cout << x << endl;
}
5
x
void main()
{
x+=4;
x++;
cout << x << endl;
}
4

43
Inline Keyword?
int x = 0;
void main()
{
f2();
cout << x << endl;
}

44
What is Bad About Using
Global Vairables?
 Not safe!
 If two or more programmers are working together in a
program, one of them may change the value stored in
the global variable without telling the others who may
depend in their calculation on the old stored value!
 Against The Principle of Information Hiding!
 Exposing the global variables to all functions is
against the principle of information hiding since this
gives all functions the freedom to change the values
stored in the global variables at any time (unsafe!)

45
Local Variables
 Local variables are declared inside the function
body and exist as long as the function is running
and destroyed when the function exit
 You have to initialize the local variable before
using it
 If a function defines a local variable and there
was a global variable with the same name, the
function uses its local variable instead of using
the global variable

46
Example of Defining and Using
Global and Local Variables
int x; // Global variable
Void fun(); // function signature
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
int x = 10; // Local variable
cout << x << endl;
}

47
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 0
Global variables are
automatically initialized to 0

48
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 0
void main()
{
x = 4;
fun();
cout << x << endl;
}
1

49
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
2
void fun()
{
int x = 10;
cout << x << endl;
}
x ????
3

50
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
2
void fun()
{
int x = 10;
cout << x << endl;
}
x 10
3

51
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
2
void fun()
{
int x = 10;
cout << x << endl;
}
x 10
4

52
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
2
void fun()
{
int x = 10;
cout << x << endl;
}
x 10
5

53
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
6

54
void main()
{
x = 4;
fun();
cout << x << endl;
}
void fun()
{
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun();
cout << x << endl;
}
7

55
II. Using Parameters
 Function Parameters come in three
flavors:
 Value parameters – which copy the values of
the function arguments
 Reference parameters – which refer to the
function arguments by other local names and
have the ability to change the values of the
referenced arguments
 Constant reference parameters – similar to
the reference parameters but cannot change
the values of the referenced arguments

56
Value Parameters
 This is what we use to declare in the function signature or
function header, e.g.
int max (int x, int y);
 Here, parameters x and y are value parameters
 When you call the max function as max(4, 7), the values 4 and 7
are copied to x and y respectively
 When you call the max function as max (a, b), where a=40 and
b=10, the values 40 and 10 are copied to x and y respectively
 When you call the max function as max( a+b, b/2), the values 50
and 5 are copies to x and y respectively
 Once the value parameters accepted copies of the
corresponding arguments data, they act as local
variables!

57
Example of Using Value
Parameters and Global Variables
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 0
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
1

58
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
2
void fun(int x )
{
cout << x << endl;
x=x+5;
}
3
3

59
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
2
void fun(int x )
{
cout << x << endl;
x=x+5;
}
3
4
8

60
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
2
void fun(int x )
{
cout << x << endl;
x=x+5;
}
3
8
5

61
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
6

62
void fun(int x)
{
cout << x << endl;
x=x+5;
}
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
x 4
void main()
{
x = 4;
fun(x/2+1);
cout << x << endl;
}
7

63
Reference Parameters
 As we saw in the last example, any changes in
the value parameters don’t affect the original
function arguments
 Sometimes, we want to change the values of the
original function arguments or return with more
than one value from the function, in this case we
use reference parameters
 A reference parameter is just another name to the
original argument variable
 We define a reference parameter by adding the & in
front of the parameter name, e.g.
double update (double & x);

64
Example of Reference Parameters
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
1 x
? x
4

65
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
2
x
? x
4
void fun( int & y )
{
cout<<y<<endl;
y=y+5;
}
3

66
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
2
x
? x
4
void fun( int & y )
{
cout<<y<<endl;
y=y+5;
}
4 9

67
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
2
x
? x
9
void fun( int & y )
{
cout<<y<<endl;
y=y+5;
}
5

68
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
6
x
? x
9

69
void fun(int &y)
{
cout << y << endl;
y=y+5;
}
void main()
{
fun(x);
cout << x << endl;
}
void main()
{
int x = 4;
fun(x);
cout << x << endl;
}
x
? x
9
7

70
Constant Reference Parameters
 Constant reference parameters are used under
the following two conditions:
 The passed data are so big and you want to save
time and computer memory
 The passed data will not be changed or updated in
the function body
 For example
void report (const string & prompt);
 The only valid arguments accepted by reference
parameters and constant reference parameters
are variable names
 It is a syntax error to pass constant values or
expressions to the (const) reference parameters

power point presentation on object oriented programming functions concepts

More Related Content

Similar to power point presentation on object oriented programming functions concepts (20)

More from bhargavi804095 (20)

Recently uploaded (20)

power point presentation on object oriented programming functions concepts
