Selection sort algorithm presentation, selection sort example using power point
Download as PPTX, PDF2 likes1,095 views
The document presents a program for sorting an array using selection sort, which repeatedly searches for the largest value and moves it to its correct position. It includes an example with an unsorted array, describes the algorithm steps, and provides the source code written in C. Additionally, it discusses the time and space efficiency associated with the selection sort algorithm.
![*Algorithm:
Algorithm SELECTION(A,N)
Step1 : Repeat steps 2 and 3 for k=1,2,….N-1;
Step2 : Call MIN(A,K,N,LOC).
Step3: [Interchange A[k] and A[LOC].]
Set TEMP:=A[k],
A[k]:=A[LOC] and
A[LOC]:=TEMP.
[End of step 1 loop]
Step4:Exit.](https://image.slidesharecdn.com/selectionsort-180914165358/85/Selection-sort-algorithm-presentation-selection-sort-example-using-power-point-7-320.jpg)

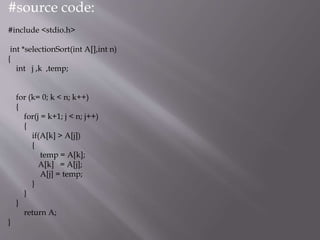

![#source code:
#include <stdio.h>
int *selectionSort(int A[],int n)
{
int j ,k ,temp;
for (k= 0; k < n; k++)
{
for(j = k+1; j < n; j++)
{
if(A[k] > A[j])
{
temp = A[k];
A[k] = A[j];
A[j] = temp;
}
}
}
return A;
}](https://image.slidesharecdn.com/selectionsort-180914165358/85/Selection-sort-algorithm-presentation-selection-sort-example-using-power-point-8-320.jpg)
![int main()
{
int A[1000],k,n;
printf("Enter the number of element you want to Sort : ");
scanf("%d",&n);
printf("Enter Elements in the list : ");
for(k = 0; k < n; k++)
{
scanf("%d",&A[k]);
}
int *sortArray = selectionSort(A,n);
printf("Sorted list : ");
for(k = 0; k < n; k++ )
{
printf("%dt",sortArray[k]);
}
}](https://image.slidesharecdn.com/selectionsort-180914165358/85/Selection-sort-algorithm-presentation-selection-sort-example-using-power-point-9-320.jpg)
Selection sort algorithm presentation, selection sort example using power point
- 2. #Presentation submitted to: Sohrab Hossain, Assistant professor of CSE FSET,USTC #Presentation submitted by: Md Abdul Kuddus Department of CSE ID:15010102 Batch:25th
- 3. #Presentation Name: Write a program to sort the element of an array using selection sort. #What is selection sort?? Repeatedly searches for the largest value in a section of the data Moves that value into its correct position in a sorted section of the list Uses the Find Largest algorithm
- 4. #Example: Given array: 34 8 64 51 32 21 sorted comparison item unsorted comparison time 0 1 2 3 4 5
- 5. *pass 1: compare 1st position with minimum item After pass1 *pass2: compare 2nd position with next minimum item After pass2 34 8 64 51 21 8 34 64 51 218 34 64 51 21 8 21 64 51 34

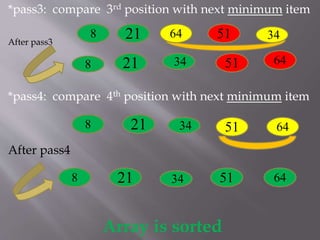

- 6. *pass3: compare 3rd position with next minimum item After pass3 *pass4: compare 4th position with next minimum item After pass4 Array is sorted 8 21 64 51 34 8 21 34 51 64 8 21 34 51 64 8 21 34 51 64
- 7. *Algorithm: Algorithm SELECTION(A,N) Step1 : Repeat steps 2 and 3 for k=1,2,….N-1; Step2 : Call MIN(A,K,N,LOC). Step3: [Interchange A[k] and A[LOC].] Set TEMP:=A[k], A[k]:=A[LOC] and A[LOC]:=TEMP. [End of step 1 loop] Step4:Exit.
- 8. #source code: #include <stdio.h> int *selectionSort(int A[],int n) { int j ,k ,temp; for (k= 0; k < n; k++) { for(j = k+1; j < n; j++) { if(A[k] > A[j]) { temp = A[k]; A[k] = A[j]; A[j] = temp; } } } return A; }
- 9. int main() { int A[1000],k,n; printf("Enter the number of element you want to Sort : "); scanf("%d",&n); printf("Enter Elements in the list : "); for(k = 0; k < n; k++) { scanf("%d",&A[k]); } int *sortArray = selectionSort(A,n); printf("Sorted list : "); for(k = 0; k < n; k++ ) { printf("%dt",sortArray[k]); } }
- 10. #Time efficiency Comparisons: n(n-1)/2 Exchanges: n (swapping largest into place) Overall: (n2), best and worst cases #Space efficiency Space for the input sequence, plus a constant number of local variables
