Performance Troubleshooting Using Apache Spark Metrics

WIFI SSID:Spark+AISummit | Password: UnifiedDataAnalytics

Luca Canali, CERN
Performance
Troubleshooting Using
Apache Spark Metrics
#UnifiedDataAnalytics #SparkAISummit

About Luca
3#UnifiedDataAnalytics #SparkAISummit
• Data Engineer at CERN
– Hadoop and Spark service, database services
– 19+ years of experience with data engineering
• Sharing and community
– Blog, notes, tools, contributions to Apache Spark
@LucaCanaliDB – http://cern.ch/canali

4
CERN: founded in 1954: 12 European States
Science for Peace and Development
Today: 23 Member States
Member States: Austria, Belgium, Bulgaria, Czech Republic, Denmark, Finland, France,
Germany, Greece, Hungary, Israel, Italy, Netherlands, Norway, Poland, Portugal, Romania,
Serbia, Slovak Republic, Spain, Sweden, Switzerland and United Kingdom
Associate Members in the Pre-Stage to Membership: Cyprus, Slovenia
Associate Member States: India, Lithuania, Pakistan, Turkey, Ukraine
Applications for Membership or Associate Membership: Brazil, Croatia, Estonia
Observers to Council: Japan, Russia, United States of America; European Union, JINR
and UNESCO
~ 2600 staff
~ 1800 other paid personnel
~ 14000 scientific users
Budget (2019) ~ 1200 MCHF

Data at the Large Hadron Collider
LHC experiments data: >300 PB
Computing jobs on the WLCG Grid: using ~1M cores
5

Analytics Platform @CERN
HEP software
Experiments storage
HDFS
Personal storage
- “Big Data” open source components
- Integrated with domain-specific
software and existing infrastructure
- Users in: Physics, Accelerators, IT
6

Hadoop and Spark Clusters at CERN
• Spark running on clusters:
– YARN/Hadoop
– Spark on Kubernetes
Accelerator logging
(part of LHC
infrastructure)
Hadoop - YARN - 30 nodes
(Cores - 1200, Mem - 13 TB, Storage – 7.5 PB)
General Purpose Hadoop - YARN, 65 nodes
(Cores – 2.2k, Mem – 20 TB, Storage – 12.5 PB)
Cloud containers Kubernetes on Openstack VMs, Cores - 250, Mem – 2 TB
Storage: remote HDFS or EOS (for physics data)

Text
Code
Monitoring
Visualizations
Sparkmonitor -> Jupyter extension
for Spark monitoring, developed as
a GSoC project with CERN.
https://medium.com/@krishnanr/sp
arkmonitor-big-data-tools-for-
physics-analysis-bbcdef68b35a

Performance Troubleshooting
Goals:
• Improving productivity
• Reducing resource usage and cost
• Metrics: latency, throughput, cost
How:
• Practice and methodologies
• Gather performance and workload data

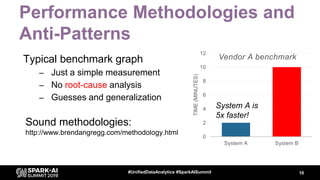

Performance Methodologies and
Anti-Patterns
Typical benchmark graph
– Just a simple measurement
– No root-cause analysis
– Guesses and generalization
Sound methodologies:
http://www.brendangregg.com/methodology.html
0
2
4
6
8
10
12
System A System B
TIME(MINUTES)
Vendor A benchmark
System A is
5x faster!

Workload and Performance Data
• You want data to find answers to questions like
– What is my workload doing?
– Where is it spending time?
– What are the bottlenecks (CPU, I/O)?
– How are systems resources used?
– Why do I measure the {latency/throughput} that I
measure?
• Why is not 10x better?
11#EUdev2

Data + Context => Insights
Workload monitoring data +
Spark architecture knowledge
Application
Info on application
architecture
Info on computing
environment
Agent takes produces:
insights + actions

Measuring Spark
• Distributed system, parallel architecture
– Many components, complexity increases when running at scale
– Execution hierarchy: SQL -> Jobs -> Stages -> Tasks
– Interaction with clusters and storage

Spark Instrumentation - WebUI
WebUI and History server: standard instrumentation
• Details on jobs, stages, tasks
• Default: http://driver_host:4040
• Details on SQL execution and execution plans
• https://github.com/apache/spark/blob/master/docs/web-ui.md

Spark Instrumentation – Metrics
Task metrics:
• Instrument resource usage by executor tasks:
– Time spent executing tasks,
– CPU used, I/O metrics,
– Shuffle read/write details, ..
– SPARK-25170:
https://spark.apache.org/docs/latest/monitoring.html
SQL metrics:
• DataFrame/SQL operations. Mostly used by Web UI SQL tab.
See SPARK-28935 + Web-UI documentation
Task

How to Gather Spark Task Metrics
• Web UI exposes REST API
Example: http://localhost:4040/api/v1/applications
History server reads from Event Log (JSON file)
– spark.eventLog.enabled=true
– spark.eventLog.dir = <path>
• Programmatic interface via “Spark Listeners”
sparkMeasure -> a tool and working example code of
how to collect metrics with Spark Listeners

Spark Metrics in REST API
…

Task Metrics in the Event Log
val df = spark.read.json("/var/log/spark-history/application_1567507314781_..")
df.filter("Event='SparkListenerTaskEnd'").select("Task Metrics.*").printSchema
|-- Disk Bytes Spilled: long (nullable = true)
|-- Executor CPU Time: long (nullable = true)
|-- Executor Deserialize CPU Time: long (nullable = true)
|-- Executor Deserialize Time: long (nullable = true)
|-- Executor Run Time: long (nullable = true)
|-- Input Metrics: struct (nullable = true)
| |-- Bytes Read: long (nullable = true)
| |-- Records Read: long (nullable = true)
|-- JVM GC Time: long (nullable = true)
|-- Memory Bytes Spilled: long (nullable = true)
|-- Output Metrics: struct (nullable = true)
| |-- Bytes Written: long (nullable = true)
| |-- Records Written: long (nullable = true)
|-- Result Serialization Time: long (nullable = true)
|-- Result Size: long (nullable = true)
|-- Shuffle Read Metrics: struct (nullable = true)
| |-- Fetch Wait Time: long (nullable = true)
| |-- Local Blocks Fetched: long (nullable = true)
| |-- Local Bytes Read: long (nullable = true)
| |-- Remote Blocks Fetched: long (nullable = true)
| |-- Remote Bytes Read: long (nullable = true)
| |-- Remote Bytes Read To Disk: long (nullable = true)
| |-- Total Records Read: long (nullable = true)
|-- Shuffle Write Metrics: struct (nullable = true)
| |-- Shuffle Bytes Written: long (nullable = true)
| |-- Shuffle Records Written: long (nullable = true)
| |-- Shuffle Write Time: long (nullable = true)
|-- Updated Blocks: array (nullable = true)
| |-- element: string (containsNull = true)
Spark Internal Task metrics:
Provide info on executors’ activity:
Run time, CPU time used, I/O metrics, JVM
Garbage Collection, Shuffle activity, etc.

Spark Listeners, @DeveloperApi
• Custom class, extends SparkListener
• Methods react on events to collect data, example:
• Attach custom Lister class to Spark Session
--conf spark.extraListeners=..
19

SparkMeasure Architecture

SparkMeasure – Getting Started
• bin/spark-shell --packages ch.cern.sparkmeasure:spark-
measure_2.11:0.15
measure_2.11:0.15
• val stageMetrics = ch.cern.sparkmeasure.StageMetrics(spark)
•
measure_2.11:0.15
• val stageMetrics = ch.cern.sparkmeasure.StageMetrics(spark)
•
• val myQuery = "select count(*) from range(1000) cross join
range(1000) cross join range(1000)"
• stageMetrics.runAndMeasure(spark.sql(myQuery).show())

SparkMeasure Output Example
• Scheduling mode = FIFO
• Spark Context default degree of parallelism = 8
• Aggregated Spark stage metrics:
• numStages => 3
• sum(numTasks) => 17
• elapsedTime => 9103 (9 s)
• sum(stageDuration) => 9027 (9 s)
• sum(executorRunTime) => 69238 (1.2 min)
• sum(executorCpuTime) => 68004 (1.1 min)
• sum(executorDeserializeTime) => 1031 (1 s)
• sum(executorDeserializeCpuTime) => 151 (0.2 s)
• sum(resultSerializationTime) => 5 (5 ms)
• sum(jvmGCTime) => 64 (64 ms)
• sum(shuffleFetchWaitTime) => 0 (0 ms)
• sum(shuffleWriteTime) => 26 (26 ms)
• max(resultSize) => 17934 (17.0 KB)
• sum(numUpdatedBlockStatuses) => 0
• sum(diskBytesSpilled) => 0 (0 Bytes)
• sum(memoryBytesSpilled) => 0 (0 Bytes)
• max(peakExecutionMemory) => 0
• sum(recordsRead) => 2000
• sum(bytesRead) => 0 (0 Bytes)
• sum(recordsWritten) => 0
• sum(bytesWritten) => 0 (0 Bytes)
• sum(shuffleTotalBytesRead) => 472 (472 Bytes)
• sum(shuffleTotalBlocksFetched) => 8
• sum(shuffleLocalBlocksFetched) => 8
• sum(shuffleRemoteBlocksFetched) => 0
• sum(shuffleBytesWritten) => 472 (472 Bytes)
• sum(shuffleRecordsWritten) => 8

SparkMeasure, Usage Modes
• Interactive: use from shell or notebooks
– Works with Jupyter notebooks, Azure, Colab, Databricks, etc.
• Use to instrument your code
• Flight recorder mode
– No changes needed to the code
– For Troubleshooting, for CI/CD pipelines, …
• Use with Scala, Python, Java
https://github.com/LucaCanali/sparkMeasure

Instrument Code with
SparkMeasure
https://github.com/LucaCanali/sparkMeasure/blob/master/docs/Instrument_Python_code.md

SparkMeasure on Notebooks:
Local Jupyter and Cloud Services
https://github.com/LucaCanali/sparkMeasure/tree/master/examples

SparkMeasure on Notebooks:
Jupyter Magic: %%sparkmeasure
… (note, output truncated to fit in slide

SparkMeasure as Flight Recorder
Capture metrics and write to files when finished:
Monitoring option: write to InfluxDB on the fly:

Spark Metrics System
• Spark is also instrumented using the
Dropwizard/Codahale metrics library
• Multiple sources (data providers)
– Various instrumentation points in Spark code
– Including task metrics, scheduler, etc
– Instrumentation from the JVM
• Multiple sinks
– Graphite (InfluxDB), JMX, HTTP, CSV, etc…

Ingredients for a Spark
Performance Dashboard
• Architecture
– Know how the “Dropwizard metrics system” works
– Which Spark components are instrumented
• Configure backend components
– InfluxDB and Grafana
• Relevant Spark configuration parameters
• Dashboard graphs
– familiarize with available metrics
– InfluxDB query building for dashboard graphs

Spark Performance Dashboard

Send Spark Metrics to InfluxDB
• $ SPARK_HOME/bin/spark-shell
• --conf "spark.metrics.conf.driver.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink"
• --conf
"spark.metrics.conf.executor.sink.graphite.class"="org.apache.spark.metrics.sink.GraphiteSink"
• --conf "spark.metrics.conf.*.sink.graphite.host"="graphiteEndPoint_influxDB_hostName>"
• --conf "spark.metrics.conf.*.sink.graphite.port"=<graphite_listening_port>
• --conf "spark.metrics.conf.*.sink.graphite.period"=10
• --conf "spark.metrics.conf.*.sink.graphite.unit"=seconds
• --conf "spark.metrics.conf.*.sink.graphite.prefix"="lucatest"
• --conf "spark.metrics.conf.*.source.jvm.class"="org.apache.spark.metrics.source.JvmSource"
• Edit $SPARK_HOME/conf/metrics.properties
• Alternative: use the config parameters spark.metrics.conf.*

Assemble Dashboard Components
• Metrics written from Spark to InfluxDB
– Configuration of a Graphite endpoint in influxdb.conf
– Templates: how to ingest Spark metrics into InfluxDB series
https://github.com/LucaCanali/Miscellaneous/tree/master/Spark_Dashboard
• Grafana graphs built using data queried from InfluxDB
– Get started: Import an example dashboard definition
• Kubernetes users: a helm chart to automate config at:
– https://github.com/cerndb/spark-dashboard

Grafana Dashboard
• Summaries
• Key metrics
• Graphs for drill-down analysis

Spark Dashboard - Examples
Graph: “number of active tasks” vs. time
• Is Spark using all the available resources/cores?
• Are there time ranges with significant gaps?
Identify possible issues:
• Long tails
• Stragglers
• Data skew

Dashboard – I/O metrics
Graph: “HDFS Read Throughput” vs. time

Dashboard – Memory
Graphs of JVM
memory usage
• Heap
• Off-heap
• Executors and
driver

Dashboard – Executor CPU
Utilization
Graph: “CPU utilization by executors’ JVM” vs. time
• Total JVM CPU:
• CPU used by tasks
• CPU used by GC

Task Time Drill Down, by Activity
Graph: Task total run time + drill down by component:
• CPU, Wait time, Garbage collection, etc
Investigation:
• CPU bound?
• Impact of GC
• I/O time?
• Other time?

Graph Annotations
Improvement:
• Mark SQL/job/stage begin and
end timestamps
Implementation:
• SparkMeasure collects and writes
query/jobs begin and end
timestamps data to InfluxDB
• Grafana implements annotations

Spark Dashboard, Lessons Learned
• Very useful to search for bottlenecks
– Many instrumented components
– Drilldown where time is spent
– Time evolution details
• Time series of N# active tasks, CPU, I/O, memory, etc
• Effort: you have to understand the root causes
– Use data to make and prove or disprove models
– The instrumentation is still evolving
• example: I/O time is not measured directly, Python UDF, etc

WIP: How to Measure I/O Time?
Goal:
• How much of the workload time is spent
doing I/O (reading)?
Apache Spark does not instrument I/O time
• Apache Hadoop Filesystem API does
not measure I/O time
Experimenting
• Added I/O read time instrumentation for
HDFS and S3A to sandbox Hadoop fork
• Exported the metrics using Spark
Executor Plugins SPARK-28091
Missing time instrumentation
Green bars: measured HDFS read time
Executor run time and wait time components

Executor Plugins Extend Metrics
• User-defined executor metrics, SPARK-28091, target Spark 3.0.0
– Example: add I/O metrics for s3a filesystem:
42
/bin/spark-shell --jars <path>/sparkexecutorplugins_2.12-0.1.jar
--conf spark.executor.plugins=ch.cern.ExecutorPluginScala.S3AMetrics27
https://github.com/cerndb/SparkExecutorPlugins

Metrics from OS Monitoring
• Very useful also to collect OS-based metrics
– Hadoop: dashboard with HDFS and YARN metrics
– OS host metrics: Collectd, Ganglia
– Kubernetes: Prometheus-based monitoring and
dashboard

Notable JIRAs about Metrics
• Documentation improvements “Spark monitoring”
– Master, SPARK-26890, Add Dropwizard metrics list and configuration details
– Spark 2.4.0, SPARK-25170: Add Task Metrics description to the documentation
• Master, SPARK-23206 Additional Memory Tuning Metrics
– Master, SPARK-29064 Add Prometheus endpoint for executor metrics
– WIP, SPARK-27189 Add memory usage metrics to the metrics system
• Master, SPARK-28091 Extend Spark metrics system with user-
defined metrics using executor plugins
• Master, SPARK-28475 Add regex MetricFilter to GraphiteSink
• CPU time used by JVM:
– Spark 2.4.0: SPARK-25228 Add executor CPU Time metric
– Master: SPARK-26928, Add driver CPU Time to the metrics system,
• Spark 2.3.0: SPARK-22190 Add Spark executor task metrics to
Dropwizard metrics

Conclusions
• Performance troubleshooting by understanding
– Spark architecture + Spark instrumentation, Web UI
– Spark Task metrics + Listeners, tool: sparkMeasure
– Spark Metrics System, tool: Grafana dashboard
• Contribute, adopt, share
– Instrumentation in Spark ecosystem keeps improving
– Solid methodologies and tools are key
– Share your results, tools, issues, dashboards..
Instrumentation +
Context
Insights +
Actions

Acknowledgements
• Colleagues at CERN
– Hadoop and Spark service, in particular Prasanth Kothuri and
Riccardo Castellotti
• Thanks to Apache Spark committers and community
– Help with JIRAs and PRs
• References:
– https://github.com/LucaCanali/sparkmeasure
– https://db-blog.web.cern.ch/blog/luca-canali/2019-02-
performance-dashboard-apache-spark

DON’T FORGET TO RATE
AND REVIEW THE SESSIONS
SEARCH SPARK + AI SUMMIT

Performance Troubleshooting Using Apache Spark Metrics

More Related Content

What's hot (20)

Similar to Performance Troubleshooting Using Apache Spark Metrics (20)

More from Databricks (20)

Recently uploaded (20)

Performance Troubleshooting Using Apache Spark Metrics
