Using MongoDB with Kafka - Use Cases and Best Practices
0 likes247 views
The document discusses the integration of MongoDB with Apache Kafka, highlighting use cases, such as using MongoDB as a source and sink. It details configuration options, throttling mechanisms, and real-world applications, including a case study from TransferWise. The presentation emphasizes the benefits of selective replication and Kafka's scalability in managing workloads effectively.
![Debezium
Supports both Replica-set and Sharded clusters
Uses the oplog to capture and create events
Selective Replication: [database|collection].[include|exclude].list
EL: field.exclude.list & field.renames
snapshot.mode = initial | never
tasks.max
initial.sync.max.threads](https://image.slidesharecdn.com/usingmongodbwithkafkausecasesandbestpractices-201021101522/85/Using-MongoDB-with-Kafka-Use-Cases-and-Best-Practices-10-320.jpg)
![MongoDB Kafka Sink
connector: Configuration
## Document manipulation settings
[key|value].projection.type=AllowList
[key|value].projection.list=name,age,address.post_code
## Id Strategy
document.id.strategy=com.mongodb.kafka.connect.sink.processor.id.strategy.BsonOidStrategy
post.processor.chain=com.mongodb.kafka.connect.sink.processor.DocumentIdAdder](https://image.slidesharecdn.com/usingmongodbwithkafkausecasesandbestpractices-201021101522/85/Using-MongoDB-with-Kafka-Use-Cases-and-Best-Practices-30-320.jpg)
Using MongoDB with Kafka - Use Cases and Best Practices
- 1. Using MongoDB with Kafka Percona Live Online 20-21 October 2020
- 2. Antonios Giannopoulos Senior Database Administrator Pedro Albuquerque Principal Database Engineer
- 3. Agenda ● Definitions ● Use cases ● Using MongoDB as a source ● Using MongoDB as a sink ● Real world use case: Transferwise ● MongoDB to Kafka Connectors ● Takeaways
- 4. What is MongoDB? ● Document-oriented Database ● Flexible JSON-style schema Use-Cases: ● Pretty much any workload ● After version 4.0/4.2 supports ACID transactions ● Frequent schema changes
- 5. What is Apache Kafka? ● Distributed event streaming platform Use-Cases: ● Publish and subscribe to stream of events ● Async RPC-style calls between services ● Log replay ● CQRS and Event Sourcing ● Real-time analytics
- 6. How can they work together?
- 7. Use cases - Topologies MongoDB as a sink MongoDB as a source MongoDB as a source/sink
- 8. MongoDB as a Source
- 9. Selective Replication/EL/ETL MongoDB doesn’t support selective Replication Oplog or Change Streams (prefered method) Kafka cluster, with one topic per collection MongoDB to Kafka connectors
- 10. Debezium Supports both Replica-set and Sharded clusters Uses the oplog to capture and create events Selective Replication: [database|collection].[include|exclude].list EL: field.exclude.list & field.renames snapshot.mode = initial | never tasks.max initial.sync.max.threads
- 11. MongoDB Kafka Source Connector - Supports both Replica-set and Sharded clusters - Uses MongoDB Change Streams to create events - Selective Replication: - mongodb db.collection -> db.collection kafka topic - Multi-source replication: - multiple collections to single kafka topic - EL: Filter or modify change events with MongoDB aggregation pipeline - Sync historical data (copy.existing=true) - copy.existing.max.threads
- 12. MongoDB as a Sink
- 13. Throttling Throttling* (is a forbidden word but) is extremely useful: - During MongoDB scaling - Planned or unplanned maintenances - Unexpected growth events - Provides workload priorities The need for throttling: MongoDB 4.2 Flow control You can configure Flow Control on the Replica-Set level (Config settings: enableFlowControl, flowControlTargetLagSeconds) Kafka provides a more flexible “flow control” that you can easily manage * Throttling may not be suitable for every workloads
- 14. Throttling The aim is to rate limit write operations Kafka supports higher write throughput & scales faster Kafka scales: - Adding partitions - Add brokers - Add clusters - Minimal application changes MongoDB scales as well: - Adding shards - Balancing takes time - Balancing affects performance
- 15. Throttling Quotas can be applied to (user, client-id), user or client-id groups producer_byte_rate : The total rate limit for the user’s producers without a client-id quota override consumer_byte_rate : The total rate limit for the user’s consumers without a client-id quota override Static changes: /config/users/ & /config/clients (watch out the override order) Dynamic changes: > bin/kafka-configs.sh --bootstrap-server <host>:<port> --describe --entity-type users|clients --entity-name user|client-id > bin/kafka-configs.sh --bootstrap-server <host>:<port> --alter --add-config 'producer_byte_rate=1024,consumer_byte_rate=2048' --entity-type users|clients --entity-name user|client-id
- 16. Throttling Evaluate a MongoDB metric - Read/Write Queues , Latency etc > db.serverStatus().globalLock.currentQueue.writers 0 Prometheus Alert Manager - Tons of integrations - Groups alerts - Notify on resolution Consumer Producer kafka-configs.sh PROD or your favorite integration... Prometheus monitors Production
- 17. Workload isolation Kafka handles specific workloads better An successful event website (for example: Percona Live 2020) - Contains a stream of social media interactions - Kafka serves the raw stream - all interactions - MongoDB serves aggregated data - for example top tags Raw steam is native for Kafka as its a commit-log MongoDB rich aggregation framework provides aggregated data
- 19. Continuous aggregations Useful for use-cases that raw data are useless (or not very useful) Kafka streams is your friend - Windowing Examples: Meteo stations sending metrics every second MongoDB serves the min(),max() for every hour Website statistics - counters MongoDB gets updated every N seconds with hits summary MongoDB gets updated with hits per minute/hour
- 20. Journal Data recovery is a usual request in the databases world Human error, application bugs, hardware failures are some reasons Kafka can help on partial recovery or point in time recovery A partial data recovery may require restore of a full backup Restore changes from a full backup, Replay the changes from Kafka
- 21. Journal

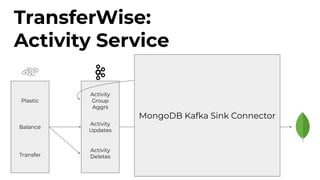

- 22. TransferWise: Activity Service ● Customer action ● Many types ● Different status ● Variety of categories ● Repository of all activities ● List of customer’s actions ● Activity list ● Ability to search and filter
- 24. spring-kafka Producer configuration private ProducerFactory<Object, Object> producerFactory(KafkaProperties kafkaProperties) { return new DefaultKafkaProducerFactory<>( Map.of( ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, kafkaProperties.getServers(), ProducerConfig.CLIENT_ID_CONFIG, kafkaProperties.getClientId(), ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, JsonSerializer.class, ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JsonSerializer.class ) ); } public KafkaTemplate<Object, Object> kafkaTemplate(KafkaProperties kafkaProperties) { return new KafkaTemplate<>(producerFactory(kafkaProperties)); }
- 25. spring-kafka Send message public void send(String key, Object value, Runnable successCallback) { String jsonBody = value.getClass() == String.class ? (String) value : JSON_SERIALIZER.writeAsJson(value); kafkaTemplate.send(topic, key, jsonBody) .addCallback(new ListenableFutureCallback<>() { @Override public void onFailure(Throwable ex) { log.error("Failed sending message with key {} to {}", key, topic); } @Override public void onSuccess(SendResult<String, String> result) { successCallback.run(); } }); }
- 26. spring-kafka Consumer configuration @EnableKafka private ConsumerFactory<String, String> consumerFactory(KafkaProperties kafkaProperties) { return new DefaultKafkaConsumerFactory<>( Map.of( ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, kafkaProperties.getServers(), ConsumerConfig.CLIENT_ID_CONFIG, kafkaProperties.getClientId(), ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, JsonDeserializer.class, ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, JsonDeserializer.class ));} ConcurrentKafkaListenerContainerFactory<String, String> factory = buildListenerContainerFactory(objectMapper, kafkaProperties); KafkaRetryConfig retryConfig = new KafkaRetryConfig(KafkaProducerFactory.kafkaTemplate(kafkaProperties)); @KafkaListener(topics = "${activity-service.kafka.topics.activityUpdates}", containerFactory = ActivityUpdatesKafkaListenersConfig.ACTIVITY_UPDATES_KAFKA_LISTENER_FACTORY)
- 28. name=mongodb-sink-example topics=topicA,topicB connector.class=com.mongodb.kafka.connect.MongoSinkConnector tasks.max=1 # Specific global MongoDB Sink Connector configuration connection.uri=mongodb://mongod1:27017,mongod2:27017,mongod3:27017 database=perconalive collection=slides MongoDB Kafka Sink connector: Configuration
- 29. MongoDB Kafka Sink connector: Configuration # Message types key.converter=io.confluent.connect.avro.AvroConverter key.converter.schema.registry.url=http://localhost:8081 value.converter=io.confluent.connect.avro.AvroConverter value.converter.schema.registry.url=http://localhost:8081
- 30. MongoDB Kafka Sink connector: Configuration ## Document manipulation settings [key|value].projection.type=AllowList [key|value].projection.list=name,age,address.post_code ## Id Strategy document.id.strategy=com.mongodb.kafka.connect.sink.processor.id.strategy.BsonOidStrategy post.processor.chain=com.mongodb.kafka.connect.sink.processor.DocumentIdAdder

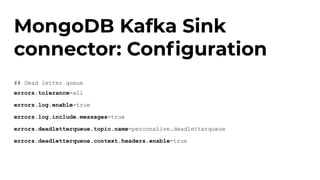

- 31. MongoDB Kafka Sink connector: Configuration ## Dead letter queue errors.tolerance=all errors.log.enable=true errors.log.include.messages=true errors.deadletterqueue.topic.name=perconalive.deadletterqueue errors.deadletterqueue.context.headers.enable=true

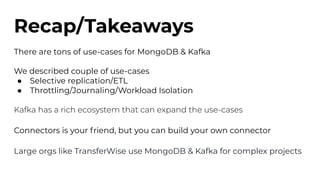

- 32. Recap/Takeaways There are tons of use-cases for MongoDB & Kafka We described couple of use-cases ● Selective replication/ETL ● Throttling/Journaling/Workload Isolation Kafka has a rich ecosystem that can expand the use-cases Connectors is your friend, but you can build your own connector Large orgs like TransferWise use MongoDB & Kafka for complex projects
- 33. - Thank you!!! - - Q&A - Big thanks to: John Moore, Principal Engineer @Eventador Diego Furtado, Senior Software Engineer @TransferWise for their guidance
