Introduction to java programming part 2

UniversityofEducationOkaraCampus
1
Introduction To Java
Programming
You will learn about the process of creating Java programs and
constructs for input, output, branching, looping, as well some of
the history behind Java’s development.
Inam Ul-Haq
Lecturer in Computer Science
MS Computer Science (Sweden)
University of Education, Okara Campus
Inam.bth@gmail.com, organizer@dfd-charity.com
inam@acm.org, inam@ue.edu.pk , inkh10@student.bth.se
Lecture 2, Part-2

Common Java Operators / Operator
Precedence
Precedence
level
Operator Description Associativity
1 i++
i--
Post-increment
Post-decrement
Right to left
2 ++i
--i
+
-
!
~
(type)
Pre-increment
Pre-decrement
Unary plus
Unary minus
Logical negation
Bitwise complement
Cast
Right to left

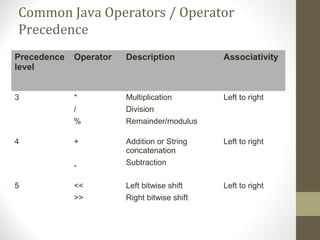

Precedence
Precedence
level
3 *
/
%
Multiplication
Division
Remainder/modulus
Left to right
4 +
-
Addition or String
concatenation
Subtraction
Left to right
5 <<
>>
Left bitwise shift
Right bitwise shift
Left to right

Precedence
Precedenc
e level
6 <
<=
>
>=
Less than
Less than, equal to
Greater than
Greater than, equal to
Left to right
7 = =
!=
Equal to
Not equal to
Left to right
8 & Bitwise AND Left to right
9 ^ Bitwise exclusive OR Left to right

Precedence
Precedence
level
10 | Bitwise OR Left to right
11 && Logical AND Left to right
12 || Logical OR Left to right

Precedence
Precedence
level
13 =
+=
-=
*=
/=
%=
&=
^=
|=
<<=
>>=
Assignment
Add, assignment
Subtract, assignment
Multiply, assignment
Division, assignment
Remainder, assignment
Bitwise AND, assignment
Bitwise XOR, assignment
Bitwise OR, assignment
Left shift, assignment
Right shift, assignment
Right to left

Post/Pre Operators
The name of the example is: Order1.java
public class Order1
{
public static void main (String [] args)
{
int num = 5;
System.out.println(num);
num++;
++num;
System.out.println(++num);
System.out.println(num++);
}
}
7
Pre=++num
Post=num++

Post/Pre Operators (2)
The name of the example is: Order2.java
public class Order2
{
{
int num1;
int num2;
num1 = 5;
num2 = ++num1 * num1++;
System.out.println("num1=" + num1);
System.out.println("num2=" + num2);
}
}
8
Pre=++num
Post=num++

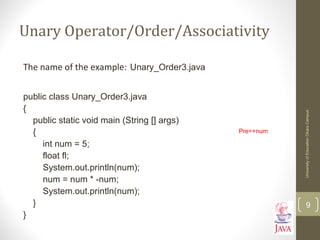

Unary Operator/Order/Associativity
The name of the example: Unary_Order3.java
public class Unary_Order3.java
{
{
int num = 5;
float fl;
num = num * -num;
}
}
9
Pre=+num

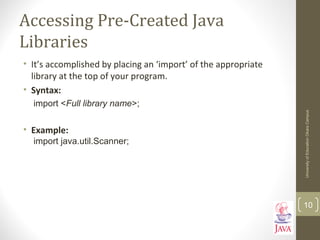

Accessing Pre-Created Java
Libraries
• It’s accomplished by placing an ‘import’ of the appropriate
library at the top of your program.
• Syntax:
import <Full library name>;
• Example:
import java.util.Scanner;
10

Getting Text Input
• You can use the pre-written methods (functions) in the
Scanner class.
• General structure:
11
main (String [] args)
{
Scanner <name of scanner> = new Scanner (System.in);
<variable> = <name of scanner> .<method> ();
}
Creating a
scanner object
(something
that can scan
user input)
Using the capability of
the scanner object
(actually getting user
input)

Getting Text Input (2)
The name of the online example: MyInput.java
public class MyInput
{
{
String str1;
int num1;
Scanner in = new Scanner (System.in);
System.out.print ("Type in an integer: ");
num1 = in.nextInt ();
System.out.print ("Type in a line: ");
in.nextLine ();
str1 = in.nextLine ();
System.out.println ("num1:" +num1 +"t str1:" + str1);
}
}
12

Useful Methods Of Class
Scanner1
• nextInt () //input for integer
• nextLong ()
• nextFloat ()
• nextDouble ()
• nextLine (); //input for string
13
1 Online documentation: http://java.sun.com/javase/6/docs/api/

Reading A Single Character
• Text menu driven programs may require this capability.
• Example:
GAME OPTIONS
(a)dd a new player
(l)oad a saved game
(s)ave game
(q)uit game
• There’s different ways of handling this problem but one
approach is to extract the first character from the string.
• Partial example:
String s = “foo“;
System.out.println(s.charAt(0));
14

Reading A Single Character
• Name of the (more complete example): MyInputChar.java
public class MyInputChar
{
{
final int FIRST = 0; //contant
String selection;
System.out.println("GAME OPTIONS");
System.out.println("(a)dd a new player");
System.out.println("(l)oad a saved game");
System.out.println("(s)ave game");
System.out.println("(q)uit game");
System.out.print("Enter your selection: ");
15
selection = in.nextLine ();
System.out.println ("Selection: " + selection.charAt(FIRST));
}
}

Decision Making In Java
• Java decision making constructs
• if
• if, else
• if, else-if
• switch
16
Decision Making: Logical Operators
Logical Operation Python Java
AND and &&
OR or ||
NOT not, ! !

Decision Making: If
Format:
if (Boolean Expression)
Body
Example:
if (x != y)
System.out.println("X and Y are not equal");
if ((x > 0) && (y > 0))
{
System.out.println("X and Y are positive");
}
17
•Indenting the body of
the branch is an
important stylistic
requirement of Java
but unlike Python it is
not enforced by the
syntax of the
language.
•What distinguishes the
body is either:
1.A semi colon (single
statement branch)
2.Braces (a body that
consists of multiple
statements)

Decision Making: If, Else
Format:
if (Boolean expression)
Body of if
else
Body of else
Example:
if (x < 0)
System.out.println("X is negative");
else
System.out.println("X is non-negative");
18

Example Program: If-Else
• Name of the example: BranchingExample1.java
public class BranchingExample1
{
{
Scanner in = new Scanner(System.in);
final int WINNING_NUMBER = 131313;
int playerNumber = -1;
System.out.print("Enter ticket number: ");
playerNumber = in.nextInt();
if (playerNumber == WINNING_NUMBER)
System.out.println("You're a winner!");
else
System.out.println("Try again.");
}
}
19

If, Else-If (1)
Format:
if (Boolean expression)
Body of if
else if (Boolean expression)
Body of first else-if
: : :
else if (Boolean expression)
Body of last else-if
else
Body of else
20

If, Else-If (2)
Name of the online example: BranchingExample.java
public class BranchingExample2
{
{
int gpa = -1;
System.out.print("Enter letter grade: ");
gpa = in.nextInt();
21

If, Else-If (3)
if (gpa == 4)
System.out.println("A");
else if (gpa == 3)
System.out.println("B");
else if (gpa == 2)
System.out.println("C");
else if (gpa == 1)
System.out.println("D");
else if (gpa == 0)
System.out.println("F");
else
System.out.println("Invalid letter grade");
}
}
22

Alternative To Multiple Else-If’s: Switch
(1)
Format (character-based switch):
switch (character variable name)
{
case '<character value>':
Body
break;
case '<character value>':
Body
break;
:
default:
Body
}
1Thetypeofvariableinthebracketscanbeabyte,char,short,intorlong
23
Important! The break is
mandatory to separate
Boolean expressions
(must be used in all but
the last)

Switch: When To Use/When Not To Use
(2)
• Name of the example: SwitchExample.java
public class SwitchExample
{
{
final int FIRST = 0;
String line;
char letter;
int gpa;
System.out.print("Enter letter grade: ");
24

(3)
line = in.nextLine ();
letter = line.charAt(FIRST);
switch (letter)
{
case 'A':
case 'a':
gpa = 4;
break;
case 'B':
case 'b':
gpa = 3;
break;
case 'C':
case 'c':
gpa = 2;
break;
25

(4)
case 'D':
case 'd':
gpa = 1;
break;
case 'F':
case 'f':
gpa = 0;
break;
default:
gpa = -1;
}
System.out.println("Letter grade: " + letter);
System.out.println("Grade point: " + gpa);
}
}
26

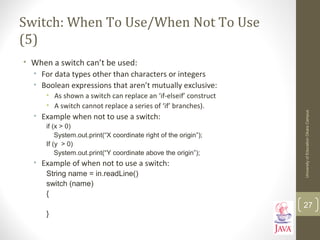

(5)
• When a switch can’t be used:
• For data types other than characters or integers
• Boolean expressions that aren’t mutually exclusive:
• As shown a switch can replace an ‘if-elseif’ construct
• A switch cannot replace a series of ‘if’ branches).
• Example when not to use a switch:
if (x > 0)
System.out.print(“X coordinate right of the origin”);
If (y > 0)
System.out.print(“Y coordinate above the origin”);
• Example of when not to use a switch:
String name = in.readLine()
switch (name)
{
}
27

Loops
Java Pre-test loops
• For
• While
Java Post-test loop
• Do-while
28
While Loops
Format:
while (Boolean expression)
Body
Example:
int i = 1;
while (i <= 4)
{
// Call function
createNewPlayer();
i = i + 1;
}
For Loops
Format:
for (initialization; Boolean expression; update control)
Body
Example:
for (i = 1; i <= 4; i++)
{
// Call function
createNewPlayer();
i = i + 1;
}

Post-Test Loop: Do-While
• Recall: Post-test loops evaluate the Boolean expression after the
body of the loop has executed.
• This means that post test loops will execute one or more times.
• Pre-test loops generally execute zero or more times.
29
Format:
do
Body
while (Boolean expression);
Example:
char ch = 'A';
do
{
System.out.println(ch);
ch++;
}
while (ch <= 'K');

Contrasting Pre Vs. Post Test
Loops
• Although slightly more work to implement the while loop is
the most powerful type of loop.
• Program capabilities that are implemented with either a ‘for’
or ‘do-while’ loop can be implemented with a while loop.
• Implementing a post test loop requires that the loop control
be primed correctly (set to a value such that the Boolean
expression will evaluate to true the first it’s checked).
30

Example: Post-Test
Implementation
• Name of the online example: PostTestExample.java
public class PostTestExample
{
{
char answer;
String temp;
do
{
System.out.println("JT's note: Pretend that we play our game");
System.out.print("Play again? Enter 'q' to quit: ");
temp = in.nextLine();
answer = temp.charAt(FIRST);
} while ((answer != 'q') && (answer != 'Q'));
}
}
31

Example: Pre-Test
Implementation
• Name of the online example: PreTestExample.java
public class PreTestExample
{
{
char answer = ' ';
String temp;
while ((answer != 'q') && (answer != 'Q'))
{
}
}
}
32

Now What Happens???
public class PreTestExample
{
{
char answer = ' ';
String temp;
while ((answer != 'q') && (answer != 'Q'))
}
}
33

After This Section You Should Now Know
• How Java was developed and the impact of it's roots on the
language
• The basic structure required in creating a simple Java program as
well as how to compile and run programs
• How to document a Java program
• How to perform text based input and output in Java
• The declaration of constants and variables
• What are the common Java operators and how they work
• The structure and syntax of decision making and looping constructs
34
Special Thanks to James Tam

The End
let’s go for tea
35
